Description
Coming with advanced HomePlug AV2 technology, TL-PA7010P KIT provides users with high-speed data transfer rates of up to 1000Mbps, which is ideal for bandwidth intensive applications such as multiple HD/3D/4K video streaming, online gaming and large file transfers.
With one Gigabit Ethernet port, TL-PA7010P KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7010P KIT the perfect home entertainment companion.
Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you're done!
-
Perfect for bandwidth demanding activities
Coming with advanced HomePlug AV2 technology, TL-PA7010P KIT provides users with high-speed data transfer rates of up to 1000Mbps, which is ideal for bandwidth intensive applications such as multiple HD/3D/4K video streaming, online gaming and large file transfers. -
Gigabit port for ultra-fast datasheet transfer
With one Gigabit Ethernet port, TL-PA7010P KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7010P KIT the perfect home entertainment companion. -
Plug and Play, no configuration required
Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you're done!
Specifications
Summary
- Product Description

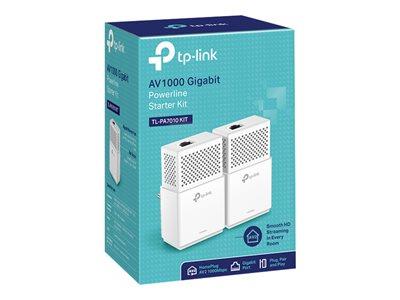

- TP-Link AV1000 - Gigabit Passthrough Starter Kit - powerline adapter kit - wall-pluggable
- Device Type
- Powerline adapter kit
- Enclosure Type
- Wall-pluggable
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901
- Data Transfer Rate
- 1 Gbps
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, HomePlug AV, HomePlug AV 2.0, IEEE 1901
- Power
- AC 220 V (50 Hz)
- Dimensions (WxDxH)
- 12.6 cm x 7 cm x 4.2 cm
Detailed Specification
General
- Device Type
- Powerline adapter kit
- Enclosure Type
- Wall-pluggable
- Connectivity Technology
- Wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901
- Data Transfer Rate
- 1 Gbps
- Encryption Algorithm
- 128-bit AES
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, HomePlug AV, HomePlug AV 2.0, IEEE 1901, RoHS
- Status Indicators
- Power, LAN, powerline
Line Properties
- Line Coding Format
- OFDM
Expansion / Connectivity
- Interfaces
- LAN: 1 x HomePlug AV 2.0
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 220 V (50 Hz)
- Power Consumption Operational
- 2.64 Watt
Miscellaneous
- Cables Included
- 1 x network cable - 2 m
Dimensions & Weight
- Width
- 12.6 cm
- Depth
- 7 cm
- Height
- 4.2 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
