Description

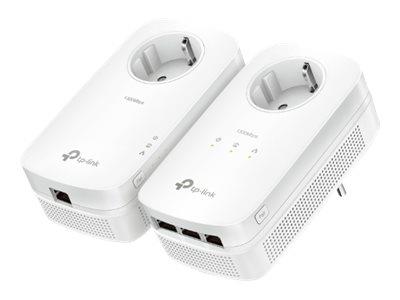

AV1300 3-port Gigabit Pass-through Powerline Starter Kit brings internet to any area with a power outlet using your home's electrical wiring.
-
HomePlug AV2 standard compliant
The HomePlug AV2 standard creates high-speed data transfer rates of up to 1300Mbps to support all your online activities. -
Gigabit Ethernet for fast connections
Gigabit Ethernet port provides reliable high-speed wired connections for game consoles, smart TVs, STB and more. -
2 x 2 MIMO for more throughput over powerline
2 x 2 MIMO technology is like adding an extra lane on a highway. It establishes multiple simultaneous connections so you can enjoy 2x speeds and greater stability. -
Internet from any outlet
AV1300 3-port Gigabit Pass-through Powerline Starter Kit brings internet to any area with a power outlet using your home's electrical wiring.
Specifications
Summary
- Product Description
- TP-Link AV1300 - Gigabit Passthrough Starter Kit - powerline adapter kit - wall-pluggable
- Device Type
- Powerline adapter kit
- Enclosure Type
- Wall-pluggable
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901
- Data Transfer Rate
- 1300 Mbps
- Features
- Quality of Service (QoS)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Dimensions (WxDxH)
- 13.1 cm x 7.1 cm x 4.2 cm
- System Requirements
- Apple MacOS, Linux, Microsoft Windows 2000, Microsoft Windows 2003, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10
- Localisation
- Europe
Detailed Specification
General
- Device Type
- Powerline adapter kit
- Enclosure Type
- Wall-pluggable
- Connectivity Technology
- Wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901
- Data Transfer Rate
- 1300 Mbps
- Encryption Algorithm
- 128-bit AES
- Features
- Quality of Service (QoS)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, Plug and Play, RoHS
- Status Indicators
- Power, LAN, powerline
Line Properties
- Line Coding Format
- OFDM
Expansion / Connectivity
- Interfaces
- LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , 1 x HomePlug AV
Power
- Power Device
- Internal power supply
- Power Consumption Operational
- 5.53 Watt
Miscellaneous
- Cables Included
- 2 x network cable
- Localisation
- Europe
Software / System Requirements
- Software Included
- Drivers & Utilities
- OS Required
- Apple MacOS, Linux, Microsoft Windows 2000, Microsoft Windows 2003, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10
Dimensions & Weight
- Width
- 13.1 cm
- Depth
- 7.1 cm
- Height
- 4.2 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
