Description

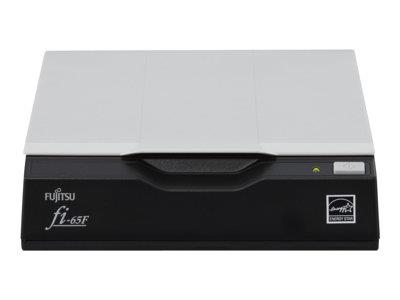

The compact, lightweight fi-65F scanner is ideal for busy office and retail environments. It quickly scans important, small documents like passports, IDs, prescriptions, driving licences, customer and medical cards and photographs, and seamlessly integrates with virtually any line of business application (LoB).
-
Ultra compact and fast
The fi-65F has an impressively small footprint of only 145 x 234 mm, making it ideally suited for even the smallest desktop, reception, check-in desk or cashier booth. It can even be built into the counter-top. The device features High Speed USB 2.0 connectivity, outstanding performance and easy installation. The scanner can be powered through a second USB port on the computer - it can be used easily even in mobile environments where an AC power supply is unavailable. The fi-65F is able to scan A6 sized document in one second. Furthermore, only 0.5 seconds are needed to start scanning. Rapid start-up means customers will not have to wait at the counter. -
No time, no cover, no problem
The Fujitsu fi-65F increases user productivity with fast, one-second image capture (at 200 dpi) and coverless scanning. When full detail is needed, the Fujitsu fi-65F delivers clean, crisp scans up to 148 x 105 mm - in color, grayscale or monochrome - with true, 600 dpi optical resolution. Color scans take just 1.7 seconds at 200 dpi. Coverless scanning eliminates the repetitive task of opening and closing the cover before and after each scan. Simply place documents on the flatbed, press the Scan button and scan! Auto-cropping functions optimize the scan size, which helps to conserve storage resources, and auto deskew orientates the scanned image to the correct orientation regardless of how the original is placed on the flatbed.
Specifications
Summary
- Product Description
- Ricoh fi 65F - flatbed scanner - desktop - USB 2.0
- Device Type
- Flatbed scanner - desktop
- Interface Type
- USB 2.0
- Scanning Sensor Type
- Contact Image Sensor (CIS)
- Light Source
- RGB LED array
- Max Supported Document Size
- A6 (105 x 148 mm)
- Input Type
- Colour
- Grayscale / Color Depth
- 16-bit (64K grey levels)
- Grayscale / Color Depth (External)
- 8-bit (256 grey levels) / 24-bit (16.7 million colours)
- Optical Resolution
- 600 dpi x 600 dpi
- Max Document Size
- 105 mm x 148 mm
- Document Feeder Type
- Manual
- Power
- AC 120/230 V (50/60 Hz)
- System Requirements
- Microsoft Windows Vista (32/64 bits), Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Windows 8 (32/64 bits), Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2 x64 Edition, Windows 10 (32/64 bits), Microsoft Windows Server 2016 (64-bit)
- Dimensions (WxDxH)
- 14.5 cm x 23.4 cm x 4 cm
- Weight
- 900 g
- Environmental Standards
- ENERGY STAR Qualified
Detailed Specification
General
- Type
- Flatbed scanner - desktop
- Interface Type
- USB 2.0
- Max Supported Document Size
- A6 (105 x 148 mm)
Scanner
- Input Type
- Colour
- Grayscale Depth
- 16-bit (64K grey levels)
- Grayscale Depth (External)
- 8-bit (256 grey levels)
- Colour Depth (External)
- 24-bit (16.7 million colours)
- Optical Resolution
- 600 dpi x 600 dpi
- Scanning Sensor Type
- Contact Image Sensor (CIS)
- Bulb / Light Source Type
- RGB LED array
- Scanner Speed Details
- 1.7 sec/scan - portrait colour (AC powered) - 200 dpi , 1 sec/scan - portrait greyscale (AC powered) - A6 - 200 dpi , 1 sec/scan - portrait B&W (AC powered) - A6 - 200 dpi , 1 sec/scan - portrait greyscale (AC powered) - A6 - 300 dpi , 1 sec/scan - portrait B&W (AC powered) - A6 - 300 dpi , 2 sec/scan - portrait colour (USB bus powered) - 200 dpi , 2 sec/scan - portrait greyscale (USB bus powered) - A6 - 200 dpi , 2 sec/scan - portrait B&W (USB bus powered) - A6 - 200 dpi , 2 sec/scan - portrait greyscale (USB bus powered) - A6 - 300 dpi , 2 sec/scan - portrait B&W (USB bus powered) - A6 - 300 dpi
- Scanner Features
- Powered by USB port
- Compliant Standards
- TWAIN, ISIS
Media Handling
- Max Document Size
- 105 mm x 148 mm
- Document Feeder Type
- Manual
Expansion / Connectivity
- Interfaces
- USB 2.0 - Type B
Miscellaneous
- Cables Included
- 1 x USB cable
- Compliant Standards
- RoHS
Environmental Standards
- ENERGY STAR Certified
- Yes
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational (Standby)
- 8 Watt (2 Watt)
Software / System Requirements
- Software Included
- Software Operation Panel, PaperStream IP, PaperStream Capture
- OS Required
- Microsoft Windows Vista (32/64 bits), Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Windows 8 (32/64 bits), Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2 x64 Edition, Windows 10 (32/64 bits), Microsoft Windows Server 2016 (64-bit)
Dimensions & Weight
- Width
- 14.5 cm
- Depth
- 23.4 cm
- Height
- 4 cm
- Weight
- 900 g
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 20 - 80% (non-condensing)
