Description

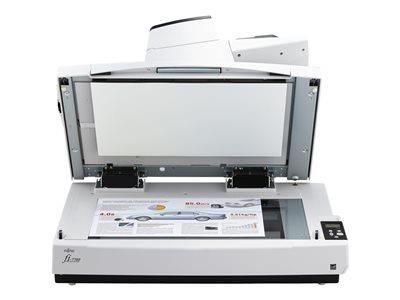

With scanning speeds of 75 ppm (200/300 dpi), the fi-7700S greatly improves process efficiency. Large volumes of information can be captured from various media, including thin paper, plastic cards, envelopes and long page documents.
The fi-7700S automatically adjusts to paper weights from 20-413 g/m². The straight paper path reduces the load on a document and assures reliable scanning regardless of the condition and type of a document. By simply sliding a lever to non-separation mode, you can easily scan thick and long documents folded in half, multi-layered document sets and envelopes.
Skew Reducer automatically handles sheets of paper in a stack individually, so that if one sheet is fed-in skewed, subsequent sheets are not forced into physical skew. This ensures that all information in the documents is captured correctly, even in batches with mixed document formats. The Paper Protection function monitors document movement and automatically stops feeding when any irregularities are detected.
The fi-7700S's ADF unit slides to either side or rotates by 180 degrees. The LCD on the operation panel reveals the scanner status at a glance and enables instant operation.
The Automatic Document Feeder's (ADF) independent side guides move to exactly the position required for each batch. The adjustable stacker side guides support neat alignment of processed documents. The fi-7700S flatbed consecutively scans thick, fragile or bound documents even with the document cover open.
The fi-7700S comes bundled with PaperStream IP, an integrated scanner driver and image enhancement module that is built on TWAIN/ISIS standards offering user friendly operability, intuitive high quality image creation and real time processing that will benefit post scan routines like OCR. PaperStream Capture enhances the document capture process from adjusting scanning settings to performing batch scanning, verifying data and releasing to directories, repositories or subsequent process routines. Users can complete data capture tasks easily with the extremely user-friendly graphical user interface (GUI). Moving scanned batches into a queue for later retrieval is possible as well.
-
Efficient document handling
The Ricoh fi-7700S scanner is designed to enhance productivity with its automatic document feeder capable of handling up to 300 sheets, ensuring seamless scanning of bulk documents without constant manual intervention. -
Versatile scanning capabilities
This scanner supports a wide range of document types including bulk objects, embossed cards, envelopes, plain paper, and plastic cards, making it a versatile choice for diverse scanning needs. -
Advanced imaging technology
Equipped with Dual CCD scanning sensors and a white LED array, the fi-7700S delivers high-quality scans with a color depth of 24-bit and grayscale depth of 8-bit, ensuring vivid and accurate color reproduction. -
High-speed performance
Achieve scanning efficiency with speeds of up to 75 pages per minute in both black and white and color, complemented by features like barcode detection and ultrasonic multifeed sensor for optimal workflow. -
Energy-efficient design
ENERGY STAR certified and featuring a low power consumption mode, the fi-7700S combines performance with energy efficiency, making it an eco-friendly addition to any office.
Specifications
Summary
- Product Description
- Ricoh fi-7700S - document scanner - desktop - USB 3.1 Gen 1
- Device Type
- Document scanner - desktop
- Interface Type
- USB 3.1 Gen 1
- Scanning Sensor Type
- Dual CCD
- Light Source
- White LED array
- Max Supported Document Size
- ARCH B (304.8 x 457.2 mm)
- Input Type
- Colour
- Grayscale / Color Depth (External)
- 8-bit (256 grey levels) / 24-bit (16.7 million colours)
- Optical Resolution
- 600 dpi x 600 dpi
- Interpolated Resolution
- 1200 dpi x 1200 dpi
- Max Document Scan Speed
- 75 ppm (mono) / 75 ppm (colour)
- Max Document Size
- 304.8 mm x 5588 mm
- Supported Document Type
- Plain paper, bulk objects (such as books, magazines and other bound materials), plastic card, envelope, embossed card
- Document Feeder Type
- Automatic
- Document Storage Capacity
- 300 sheets
- Power
- AC 120/230 V (50/60 Hz)
- System Requirements
- Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2 x64 Edition, Windows 10 (32/64 bits), Microsoft Windows Server 2016 (64-bit)
- Dimensions (WxDxH)
- 70.6 cm x 50 cm x 34.5 cm
- Weight
- 35 kg
- Environmental Standards
- ENERGY STAR Qualified
Detailed Specification
General
- Type
- Document scanner - desktop
- Interface Type
- USB 3.1 Gen 1
- Max Supported Document Size
- ARCH B (304.8 x 457.2 mm)
Scanner
- Input Type
- Colour
- Grayscale Depth (External)
- 8-bit (256 grey levels)
- Colour Depth (External)
- 24-bit (16.7 million colours)
- Optical Resolution
- 600 dpi x 600 dpi
- Interpolated Resolution
- 1200 dpi x 1200 dpi
- Scanning Sensor Type
- Dual CCD
- Bulb / Light Source Type
- White LED array
- Max Document Scan Speed B/W
- 75 ppm
- Max Document Scan Speed Colour
- 75 ppm
- Scanner Speed Details
- 75 ppm - landscape - A4 - 200 dpi , 75 ppm - landscape - A4 - 300 dpi , 0.6 sec/scan - landscape flatbed - A4 - 200 dpi , 0.6 sec/scan - landscape flatbed - A4 - 300 dpi , 58 ppm - portrait - A4 - 200 dpi , 58 ppm - portrait - A4 - 300 dpi , 0.9 sec/scan - portrait flatbed - A4 - 200 dpi , 0.9 sec/scan - portrait flatbed - A4 - 300 dpi
- Scanner Features
- Paper Protection Function, Image Emphasis, Long Paper Mode, Dynamic Threshold, Error Diffusion, Barcode Detection, Ultrasonic multifeed sensor, automatic colour detection, Dither, Advanced DTC, Multi-Image Output, built-in LCD screen, RGB Color Dropout, Punch Hole Removal, Deskew, Blank Page Detection
- Compliant Standards
- TWAIN, ISIS
Media Handling
- Max Document Size
- 304.8 mm x 5588 mm
- Supported Document Type
- Plain paper, bulk objects (such as books, magazines and other bound materials), plastic card, envelope, embossed card
- Supported Document Size Details
- ADF - up to 304.8 x 431.8 mm , Flatbed - up to ARCH B (304.8 x 457.2 mm) , Long document - up to 304.8 x 5588 mm
- Document Feeder Type
- Automatic
- Document Storage Capacity
- 300 sheets
Expansion / Connectivity
- Interfaces Details
- USB 3.1 Gen 1 - Type B
Miscellaneous
- Included Accessories
- ADF paper chute, stacker
- Cables Included
- 1 x USB cable
- Compliant Standards
- RoHS
Environmental Standards
- ENERGY STAR Certified
- Yes
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational (Standby)
- 55 Watt
- Power Consumption Stand by
- 0.35 Watt
- Power Consumption Sleep
- 1.7 Watt
Software / System Requirements
- Software Included
- ScanSnap Manager, Scan to Microsoft SharePoint, ABBYY FineReader for ScanSnap, Scanner Central Admin, Software Operation Panel, PaperStream IP, PaperStream Capture, Error Recovery Guide
- OS Required
- Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2 x64 Edition, Windows 10 (32/64 bits), Microsoft Windows Server 2016 (64-bit)
Dimensions & Weight
- Width
- 70.6 cm
- Depth
- 50 cm
- Height
- 34.5 cm
- Weight
- 35 kg
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 20 - 80% (non-condensing)
