Description
Flexible - durable - high volume scanning; With scanning speeds of 100 ppm/200 ipm (200/300 dpi), the fi-7700 greatly improves process efficiency. Large volumes of information can be captured from various media, including thin paper, plastic cards, envelopes and long page documents.
Smooth paper flow; The fi-7700 automatically adjusts to paper weights from 20-413 g/m². The straight paper path reduces the load on a document and assures reliable scanning regardless of the condition and type of a document. By simply sliding a lever to non-separation mode, you can easily scan thick and long documents folded in half, multi-layered document sets and envelopes.
Innovative paper feeding mechanisms; Skew Reducer automatically handles sheets of paper in a stack individually, so that if one sheet is fed-in skewed, subsequent sheets are not forced into physical skew. This ensures that all information in the documents is captured correctly, even in batches with mixed document formats. The Paper Protection function monitors document movement and automatically stops feeding when any irregularities are detected.
Form follows function; The fi-7700's ADF unit slides to either side or rotates by 180 degrees. The LCD on the operation panel reveals the scanner status at a glance and enables instant operation.

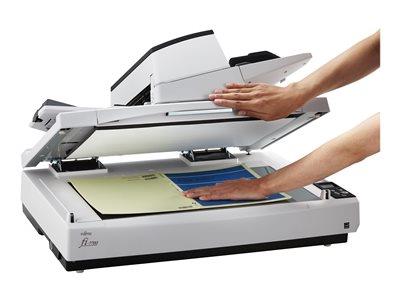

Lower workload before and after scanning; The Automatic Document Feeder's (ADF) independent side guides move to exactly the position required for each batch. The adjustable stacker side guides support neat alignment of processed documents. The fi-7700 flatbed consecutively scans thick, fragile or bound documents even with the document cover open.
PaperStream IP and PaperStream Capture; The fi-7700 comes bundled with PaperStream IP, an integrated scanner driver and image enhancement module that is built on TWAIN/ISIS standards offering user friendly operability, intuitive high quality image creation and real time processing that will benefit post scan routines like OCR. PaperStream Capture enhances the document capture process from adjusting scanning settings to performing batch scanning, verifying data and releasing to directories, repositories or subsequent process routines. Users can complete data capture tasks easily with the extremely user-friendly graphical user interface (GUI). Moving scanned batches into a queue for later retrieval is possible as well.
-
Efficient scanning
The Ricoh fi-7700 document scanner delivers exceptional speed with up to 100 ppm in both color and black and white, ensuring your workflow remains uninterrupted. -
Versatile media handling
This scanner accommodates a wide range of document sizes, from small business cards to large A3 sheets and even long documents up to 5588 mm, making it ideal for various scanning needs. -
Advanced image processing
Features like Advanced DTC, Multi-Image Output, and automatic color detection work together to enhance image quality and accuracy, providing clear and precise scans every time. -
Reliable paper feeding
With a robust feeder capacity of 300 sheets and innovative functions like Ultrasonic multifeed sensor and Paper Protection Function, the fi-7700 ensures smooth and safe document handling. -
Energy efficient
ENERGY STAR certification and a power-efficient design, with a low power consumption in sleep mode, align with your eco-friendly office goals.
Specifications
Summary
- Product Description
- Ricoh fi-7700 - document scanner - desktop - USB 3.1 Gen 1
- Device Type
- Document scanner - desktop
- Interface Type
- USB 3.1 Gen 1
- Scanning Sensor Type
- Triple CCD
- Light Source
- White LED array
- Max Supported Document Size
- ARCH B (304.8 x 457.2 mm)
- Input Type
- Colour
- Grayscale / Color Depth (External)
- 8-bit (256 grey levels) / 24-bit (16.7 million colours)
- Optical Resolution
- 600 dpi x 600 dpi
- Interpolated Resolution
- 1200 dpi x 1200 dpi
- Max Document Scan Speed
- 100 ppm (mono) / 100 ppm (colour)
- Max Document Size
- 304.8 mm x 5588 mm
- Automatic Duplexing
- Yes
- Supported Document Type
- Plain paper, bulk objects (such as books, magazines and other bound materials), plastic card, envelope, embossed card
- Document Feeder Type
- Automatic
- Document Storage Capacity
- 300 sheets
- Duty Cycle
- 30000 scans per day
- Power
- AC 120/230 V
- System Requirements
- Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2 x64 Edition, Windows 10 (32/64 bits), Microsoft Windows Server 2016 (64-bit)
- Dimensions (WxDxH)
- 70.6 cm x 50 cm x 34.5 cm
- Weight
- 35 kg
- Environmental Standards
- ENERGY STAR Qualified
- Manufacturer Warranty
- 1-year warranty
Detailed Specification
General
- Type
- Document scanner - desktop
- Interface Type
- USB 3.1 Gen 1
- Max Supported Document Size
- ARCH B (304.8 x 457.2 mm)
Scanner
- Input Type
- Colour
- Grayscale Depth (External)
- 8-bit (256 grey levels)
- Colour Depth (External)
- 24-bit (16.7 million colours)
- Optical Resolution
- 600 dpi x 600 dpi
- Interpolated Resolution
- 1200 dpi x 1200 dpi
- Automatic Duplexing
- Yes
- Scanning Sensor Type
- Triple CCD
- Bulb / Light Source Type
- White LED array
- Max Document Scan Speed B/W
- 100 ppm
- Max Document Scan Speed Colour
- 100 ppm
- Duty Cycle
- 30000 scans per day
- Scanner Speed Details
- 100 ppm - landscape - A4 - 200 dpi , 100 ppm - landscape - A4 - 300 dpi , 200 ipm - duplex - landscape - A4 - 200 dpi , 200 ipm - duplex - landscape - A4 - 300 dpi , 0.6 sec/scan - landscape flatbed - A4 - 200 dpi , 0.6 sec/scan - landscape flatbed - A4 - 300 dpi , 80 ppm - portrait - A4 - 200 dpi , 80 ppm - portrait - A4 - 300 dpi , 160 ipm - duplex - portrait - A4 - 200 dpi , 160 ipm - duplex - portrait - A4 - 300 dpi , 0.9 sec/scan - portrait flatbed - A4 - 200 dpi , 0.9 sec/scan - portrait flatbed - A4 - 300 dpi
- Scanner Features
- Paper Protection Function, Image Emphasis, Long Paper Mode, Dynamic Threshold, Error Diffusion, Barcode Detection, Ultrasonic multifeed sensor, automatic colour detection, Dither, Advanced DTC, Multi-Image Output, built-in LCD screen, RGB Color Dropout, Punch Hole Removal, Deskew, Blank Page Detection
- Compliant Standards
- TWAIN, ISIS
Media Handling
- Max Document Size
- 304.8 mm x 5588 mm
- Supported Document Type
- Plain paper, bulk objects (such as books, magazines and other bound materials), plastic card, envelope, embossed card
- Supported Document Size Details
- ADF - up to 304.8 x 431.8 mm , Flatbed - up to ARCH B (304.8 x 457.2 mm) , Long document - up to 304.8 x 5588 mm
- Document Feeder Type
- Automatic
- Document Storage Capacity
- 300 sheets
Expansion / Connectivity
- Interfaces Details
- USB 3.1 Gen 1 - Type B
Miscellaneous
- Included Accessories
- ADF paper chute, stacker
- Cables Included
- 1 x USB cable
- Compliant Standards
- RoHS
Environmental Standards
- ENERGY STAR Certified
- Yes
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V
- Power Consumption Operational (Standby)
- 64 Watt
- Power Consumption Stand by
- 0.35 Watt
- Power Consumption Sleep
- 1.7 Watt
Software / System Requirements
- Software Included
- ScanSnap Manager, Scan to Microsoft SharePoint, ABBYY FineReader for ScanSnap, Scanner Central Admin, Software Operation Panel, PaperStream IP, PaperStream Capture, 2D Barcode for PaperStream, Error Recovery Guide
- OS Required
- Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2 x64 Edition, Windows 10 (32/64 bits), Microsoft Windows Server 2016 (64-bit)
- System Requirements Details
- Core i5 - 2.5 GHz - RAM 4 GB
Dimensions & Weight
- Width
- 70.6 cm
- Depth
- 50 cm
- Height
- 34.5 cm
- Weight
- 35 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 20 - 80% (non-condensing)
