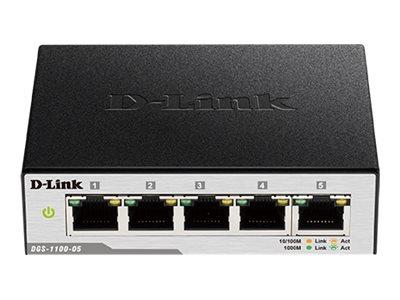

D-Link 5-Port Gigabit Smart Managed Switch

D-Link 5-Port Gigabit Smart Managed Switch

Review this product
Quicklinx: CSN2WS00 Mfr#: DGS-1100-05/B
Type: Gigabit Ethernet
Ports: 5
Data Transfer Rate: 10Mbps
Managed: Yes
POE: No
Ordered upon request
£21.66 ex VAT
£25.99 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

D-Link's DGS-1100 Series EasySmart Switches provide an affordable solution for SOHOs, small/medium-sized businesses, as well as enterprise deployments, such as in branch offices that require simple network management. The DGS-1100 Series consists of 5, 8, 16, and 24 10/100/1000 Mbps port models. The 5 and 8 port models come in a compact desktop enclosure, while the 16 and 24 port models come in a compact 11" desktop/rackmount enclosure. Two versions of the 8-port model are available - with and without Power-over-Ethernet (PoE) support. Compliant with IEEE802.3az Energy Efficient Ethernet, these switches consume less power during idle periods. They also implement D-Link Green features that detect link status and cable length and adjust power usage accordingly. Switch management can be performed through a web management interface or through the SmartConsole Utility. The DGS-1100 Series also supports Layer 2 features such as IGMP Snooping to optimize performance for multicast applications. A fanless design allows for quieter operation and provides a longer product life.

  • Auto surveillance VLAN and bandwidth control

    The DGS-1100 Series supports Auto Surveillance VLAN, which is best suited for video surveillance deployment. Auto Surveillance VLAN is a new, industry leading technology that consolidates data and surveillance video transmission through a DGS-1100 switch, thus sparing businesses the expense of dedicated hardware and facilities. Auto Surveillance VLAN also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. In addition, with Bandwidth Control, network administrators can reserve bandwidth for important functions that require more bandwidth or high priority.
  • D-Link green/power saving performance

    Compliant with IEEE802.3az Energy Efficient Ethernet, these switches consume less energy by cutting down on power consumption when the traffic volume is low. By deploying EEE devices, users can cut operating costs and even cut down on necessary cooling equipment, helping small and medium sized businesses stay within their budgets. The DGS-1100 Series also features D-Link Green Technology that helps in automatically saving energy. The switches automatically detect the length of the connected cables and can adjust power usage for shorter cable connections of up to 20 meters. In addition, the switches monitor link status of every port and drastically reduce power consumption when a port is without a link.
  • Easy to deploy

    The DGS-1100 EasySmart Switches support an intuitive SmartConsole utility and a web-based management interface that enables administrators to remotely control their network down to the port level. The SmartConsole allows customers to discover multiple D-Link Smart and EasySmart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC, and this makes initial setup of the Smart Switches quick and easy. Switches within the same L2 network segment that are connected to the user's PC are displayed on-screen for instant access. This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades.
  • Easy troubleshooting/security

    Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics is designed for network administrators to quickly examine the quality of the copper cables and also determine the type of cable error. In addition, Static MAC can disable Auto Learning on selected ports and can set static MAC addresses for designated ports, helping administrators limit network access to authorized devices only.

Specifications

Summary

Product Description
D-Link Smart Managed Switch DGS-1100-05 - switch - 5 ports - smart
Device Type
Switch - 5 ports - smart
Subtype
Gigabit Ethernet
Ports
5 x 10/100/1000
Performance
Switching capacity: 10 Gbps , Forwarding performance: 7.44 Mpps
Capacity
VLAN groups: 32 , Virtual interfaces (VLANs): 4094
MAC Address Table Size
8K entries
Jumbo Frame Support
9216 bytes
Remote Management Protocol
HTTP
Features
Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, Quality of Service (QoS), Cable Diagnostics Function, bandwidth control, D-Link Green Technology, fanless, DHCP client, Energy Efficient Ethernet, 1Mbit packet buffer
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
14.1 cm x 8.5 cm x 2.8 cm
Weight
320 g
Manufacturer Warranty
Limited lifetime warranty


Detail

General

Device Type
Switch - 5 ports - smart
Enclosure Type
Desktop
Subtype
Gigabit Ethernet
Ports
5 x 10/100/1000
Performance
Switching capacity: 10 Gbps , Forwarding performance: 7.44 Mpps
Capacity
VLAN groups: 32 , Virtual interfaces (VLANs): 4094
MAC Address Table Size
8K entries
Jumbo Frame Support
9216 bytes
Remote Management Protocol
HTTP
Features
Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, Quality of Service (QoS), Cable Diagnostics Function, bandwidth control, D-Link Green Technology, fanless, DHCP client, Energy Efficient Ethernet, 1Mbit packet buffer
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Status Indicators
Port transmission speed, power, link/activity

Expansion / Connectivity

Interfaces
5 x 1000Base-T RJ-45

Power

Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
3.35 Watt

Miscellaneous

MTBF
532,838 hours
Compliant Standards
FCC Class A certified, UL, cUL, LVD, VCCI Class A

Dimensions & Weight

Width
14.1 cm
Depth
8.5 cm
Height
2.8 cm
Weight
320 g

Manufacturer Warranty

Service & Support
Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 95% (non-condensing)
Min Storage Temperature
-10 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 95% (non-condensing)
