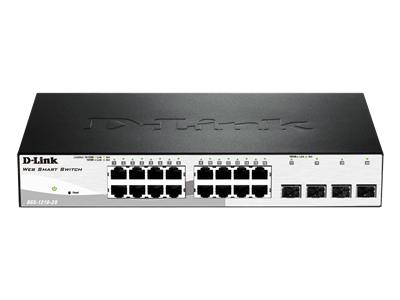

D-Link 20-Port Gigabit Smart+ Switch inc 4 SFP Ports (fanless)

Review this product
Quicklinx: 9H7BWS00 Mfr#: DGS-1210-20
Type: Gigabit Ethernet
Ports: 16
Data Transfer Rate: 1Gbps
Managed: Yes
Stock Status: In Stock
36 in stock
£103.66 ex VAT
£124.39 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

Gigabit Smart+ Switch with Fibre Uplinks

D-Link's DGS-1210 Series Gigabit Smart+ Switch with Fibre Uplinks integrates advanced management as well as security functions that provide performance and scalability.

Management options for the switch include SNMP, Web Management, D-Link Network Assistant Utility and compact command lines.

The DGS-1210 Series uses Auto Voice VLAN, ensuring bandwidth is prioritised for a smoother voice performance. The DGS-1210-10/10P/20/28 features a fanless design that allows for quieter operation and helps to extend the device's lifetime, saving energy and cutting costs without sacrificing performance.

Extensive Management and Layer 2 Features

Equipped with a complete line-up of L2 features, the DGS-1210 Series includes IGMP snooping, port mirroring, spanning tree protocol and Link Aggregation Control Protocol (LACP). The IEEE 802.3x flow control function allows servers to directly connect to the switch for fast, reliable data transfers. At 2000 Mbps full duplex, the Gigabit ports provide high-speed data pipes to servers with minimum impact to data transfer fidelity. Network maintenance features include loopback detection and cable diagnostics. Loopback detection is used to detect loops created by a specific port and automatically shut down the affected port. The cable diagnostic feature, designed primarily for administrators and customer service representatives, can rapidly discover errors and determine the cable quality, allowing hassle free diagnostics and maintenance.

The DGS-1210 Series supports Auto Surveillance VLAN (ASV), and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology that the DGS-1210 Series Gigabit Smart+ Switch with Fibre Uplinks provides. This technology consolidates data and surveillance video transmission through a single DGS-1210 Series, thus sparing businesses the expense of dedicated hardware and facilities. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. The Auto Voice VLAN technology enhances the VoIP service by automatically placing voice traffic from an IP phone to an assigned VLAN. With higher priority and individual VLAN, these features guarantee the quality and security of VoIP traffic. The DSCP markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with bandwidth control, network administrators can reserve bandwidth for important functions that are higher priority or require a larger bandwidth

Secure your Network

D-Link's innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The DGS-1210 Series supports 802.1X port based authentication, allowing the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. The DGS-1210 Series includes ARP spoofing prevention, which protects from attacks on the network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages. To prevent ARP spoofing attacks, the switch uses packet control ACLs to block invalid packets that contain fake ARP messages. For added security, the DHCP server screening feature routes DHCP server packets from user ports to prevent unauthorised IP assignment.

Versatile Management

The DGS-1210 Series provides a D-Link Network Assistant Utility that enables administrators to remotely control their network down to the port level. The D-Link network assistant utility allows customers to easily discover multiple D-Link Web Smart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC. It also simplifies the initial setup by taking switches, within the same L2 network segment, that are connected to the user's PC, and displaying them on screen for instant access. This allows extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades. The DGS-1210 Series also supports D-View 6.0 and Compact Command Line Interface (CLI) through Telnet. D-View 6.0 is a network management system that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security.

Specifications

Summary

Product Description
D-Link Web Smart DGS-1210-20 - switch - 16 ports - Managed - desktop, rack-mountable
Device Type
Switch - 16 ports - Managed
Enclosure Type
Desktop, rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
16 x 10/100/1000 + 4 x Gigabit SFP
Performance
Switching capacity: 40 Gbps , Forwarding performance: 29.8 Mpps
MAC Address Table Size
16K entries
Jumbo Frame Support
10000 bytes
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Features
Flow control, full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Safeguard Engine, D-Link Green Technology
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
Power
AC 120/230 V ( 50/60 Hz )


Detail

General

Device Type
Switch - 16 ports - Managed
Enclosure Type
Desktop, rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
16 x 10/100/1000 + 4 x Gigabit SFP
Performance
Switching capacity: 40 Gbps , Forwarding performance: 29.8 Mpps
MAC Address Table Size
16K entries
Jumbo Frame Support
10000 bytes
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Features
Flow control, full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Safeguard Engine, D-Link Green Technology
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
RAM
128 MB
Flash Memory
16 MB
Status Indicators
Link activity, port transmission speed, power, link OK

Expansion / Connectivity

Interfaces
16 x 1000Base-T - RJ-45 , 4 x SFP (mini-GBIC)

Power

Power Device
Internal power supply
Voltage Required
AC 120/230 V ( 50/60 Hz )

Miscellaneous

Compliant Standards
FCC Class A certified, C-Tick, cUL, VCCI Class A ITE, IC Class A

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 95%
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
0 - 95%
