Description

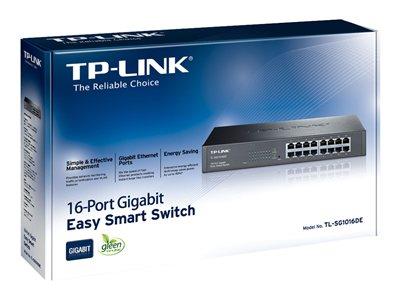

The TL-SG1016DE 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG1016DE offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1016DE can save up to 40% of power consumption, making it an Eco-friendly solution for your business network.
-
Simple & effective management
TP-LINK's Gigabit Easy Smart switch, TL-SG1016DE offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG1016DE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and 802.1P Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG1016DE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG1016DE is an upgrade from the Plug-and-Play unmanaged switch, delivering great value while empowering your network and similarly delivering great value to the end user. -
Go green with your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This TL-SG1016DE 16-Port Gigabit Easy Smart switch features the latest energy-efficient technologies that can greatly expand your network's capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. -
Ease of use
TL-SG1016DE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
Specifications
Summary
- Product Description
- TP-Link JetStream TL-SG1016DE - switch - 16 ports - Managed - rack-mountable
- Device Type
- Switch - 16 ports - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 16 x 10/100/1000
- Performance
- Switching capacity: 32 Gbps , Forwarding performance: 23.8 Mpps
- Capacity
- Virtual interfaces (VLANs): 32
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10240 bytes
- Features
- Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, QoS, fanless, loop prevention
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 801.1p
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 29.4 cm x 18 cm x 4.4 cm
- System Requirements
- UNIX, Apple MacOS, Novell NetWare, Microsoft Windows 98 Second Edition, Linux, Microsoft Windows 2000 / NT, Microsoft Windows Vista / XP / 7 / 8
Detailed Specification
General
- Device Type
- Switch - 16 ports - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 16 x 10/100/1000
- Performance
- Switching capacity: 32 Gbps , Forwarding performance: 23.8 Mpps
- Capacity
- Virtual interfaces (VLANs): 32
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10240 bytes
- Features
- Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, QoS, fanless, loop prevention
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 801.1p
Expansion / Connectivity
- Interfaces
- 16 x 1000Base-T RJ-45
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
Miscellaneous
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC, RoHS
Software / System Requirements
- OS Required
- UNIX, Apple MacOS, Novell NetWare, Microsoft Windows 98 Second Edition, Linux, Microsoft Windows 2000 / NT, Microsoft Windows Vista / XP / 7 / 8
Dimensions & Weight
- Width
- 29.4 cm
- Depth
- 18 cm
- Height
- 4.4 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
