Description
250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W.
Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.
Specifications
Summary
- Product Description

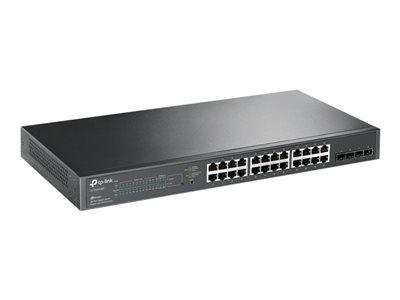

- TP-Link JetStream TL-SG2428P - switch - 24 ports - smart - rack-mountable
- Device Type
- Switch - 24 ports - smart
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 (PoE+) + 4 x SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 250 W
- Performance
- Switching capacity: 56 Gbps , Forwarding performance: 41.7 Mpps
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, DHCP, IPv4, IPv6
- Features
- Flow control, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, bandwidth control, DLDP support, 512KB packet buffer, NDP, CoS, SP, GVRP, 2 fans, Storm Control, BPDU, Link Aggregation, AAA, Voice VLAN, IPMB, ZTP, WRR, loopback detection, MLD, DSCP prioritisation
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 44 cm x 22 cm x 4.4 cm
Detailed Specification
General
- Device Type
- Switch - 24 ports - smart
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 (PoE+) + 4 x SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 250 W
- Performance
- Switching capacity: 56 Gbps , Forwarding performance: 41.7 Mpps
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, DHCP, IPv4, IPv6
- Encryption Algorithm
- SSL, SSL 3.0, TLS 1.2
- Authentication Method
- Secure Shell (SSH), RADIUS, PAP, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP), EAP-TLS, EAP-TTLS
- Features
- Flow control, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, bandwidth control, DLDP support, 512KB packet buffer, NDP, CoS, SP, GVRP, 2 fans, Storm Control, BPDU, Link Aggregation, AAA, Voice VLAN, IPMB, ZTP, WRR, loopback detection, MLD, DSCP prioritisation
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45 PoE+ , 4 x Gigabit LAN SFP
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 308.6 Watt
Miscellaneous
- Included Accessories
- Rubber feet
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC, RoHS
Dimensions & Weight
- Width
- 44 cm
- Depth
- 22 cm
- Height
- 4.4 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
