Description
- 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
- With 8 PoE+ ports, transfers data and power on one single cable
- Working with IEEE 802.3af/at compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
- Easy to use, with no configuration and installation needed
-
Power over Ethernet
Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs). -
Intelligent power management
When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation. -

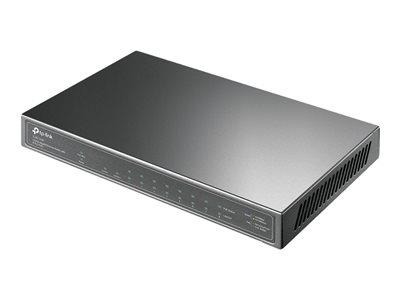

Sturdy metal casing
Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Specifications
Summary
- Product Description
- TP-Link TL-SG1210P - switch - 10 ports - unmanaged
- Device Type
- Switch - 10 ports - unmanaged
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (uplink) + 1 x Gigabit SFP (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 63 W
- Performance
- Bandwidth: 20 Gbps
- MAC Address Table Size
- 4K entries
- Features
- Flow control, IGMP snooping, store and forward, fanless, metal housing, DSCP based QoS
- Compliant Standards
- IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
- Dimensions (WxDxH)
- 20.9 cm x 12.6 cm x 2.6 cm
Detailed Specification
General
- Device Type
- Switch - 10 ports - unmanaged
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (uplink) + 1 x Gigabit SFP (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 63 W
- Performance
- Bandwidth: 20 Gbps
- MAC Address Table Size
- 4K entries
- Features
- Flow control, IGMP snooping, store and forward, fanless, metal housing, DSCP based QoS
- Compliant Standards
- IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 PoE+ , 1 x 1000Base-T RJ-45 uplink , 1 x Gigabit LAN SFP uplink
Power
- Power Device
- External power adapter
- Power Provided
- 53.5 V - 1.31 A
- Power Consumption Operational
- 78.13 Watt
Miscellaneous
- Compliant Standards
- FCC, RoHS
Dimensions & Weight
- Width
- 20.9 cm
- Depth
- 12.6 cm
- Height
- 2.6 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
