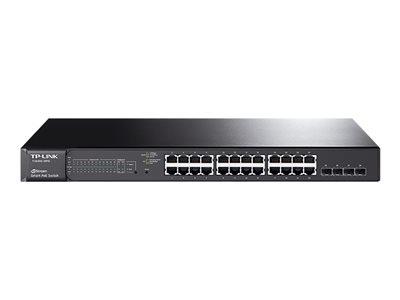

TP LINK JetStream 24-Port Gigabit Smart PoE Switch

TP LINK JetStream 24-Port Gigabit Smart PoE Switch

Review this product
Quicklinx: CMCDWS00 Mfr#: T1600G-28PS
Type: Gigabit Ethernet
Ports: 24
Managed: Yes
POE: PoE+
Stock Status: In Stock
17 in stock
£219.80 ex VAT
£263.76 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

The T1600G-28PS provides 24 10/100/1000 Mbps RJ-45 ports which support 802.3at/af-compliant PoE, with a total PoE power supply up to 192W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch is also equipped with 4 Gigabit SFP slots, expanding your network flexibly. In addition, it provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, and useful security strategies.

  • IEEE 802.3at/af-compliant Power over Ethernet

    The T1600G-28PS provides 24 10/100/1000 Mbps RJ-45 ports that support 802.3at/af-compliant PoE, with a total PoE power supply up to 192 W to power any 802.3at/af-compliant power device. Compact and flexible, the T1600G-28PS is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.
  • Abundant L2 and L2+ features

    T1600G-28PS supports rich L2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control functions. Besides, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-28PS supports L2+ feature - static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.
  • Secure networking

    T1600G-28PS supports IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1x, which allows network clients to be authenticated through external Radius servers. Guest VLAN function supports to enable the non-802.1x clients to access the specific network resource.
  • Advanced QoS features

    To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1p Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.
  • Enterprise-level management features

    T1600G-28PS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based GUI or industry-standard CLI, SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And comprehensive IPv6 supporting management ensures a smooth migration to IPv6-based network. Besides, it also supports Dual Image, which provides reduced down-time for the switches, when the image is being upgraded / downgraded.

Specifications

Summary

Product Description
TP-Link JetStream T1600G-28PS - switch - 24 ports - smart - rack-mountable
Device Type
Switch - 24 ports - L2+ - smart
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
192 W
Performance
Backplane switching capacity: 56 Gbps , Forwarding performance: 41.7 Mpps
Capacity
QoS hardware queues: 8
MAC Address Table Size
16K entries
Jumbo Frame Support
9KB
Routing Protocol
IGMPv2, IGMP, IGMPv3, MLD
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Features
Flow control, DHCP support, auto-negotiation, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, LLDP support, Port Security, Management Information Base (MIB), static routing, 802.1x authentication, DiffServ Code Point (DSCP) support, Storm Control, Internet Control Message Protocol (ICMP), Link Aggregation
Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
44 cm x 22 cm x 4.4 cm
System Requirements
UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows Vista / XP / 7 / 8


Detail

General

Device Type
Switch - 24 ports - L2+ - smart
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
192 W
Performance
Backplane switching capacity: 56 Gbps , Forwarding performance: 41.7 Mpps
Capacity
QoS hardware queues: 8
MAC Address Table Size
16K entries
Jumbo Frame Support
9KB
Routing Protocol
IGMPv2, IGMP, IGMPv3, MLD
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Encryption Algorithm
TLS 1.0, SSL 3.0
Authentication Method
Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2)
Features
Flow control, DHCP support, auto-negotiation, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, LLDP support, Port Security, Management Information Base (MIB), static routing, 802.1x authentication, DiffServ Code Point (DSCP) support, Storm Control, Internet Control Message Protocol (ICMP), Link Aggregation
Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at

Expansion / Connectivity

Interfaces
24 x 1000Base-T RJ-45 PoE+ - 30 W , 4 x 1000Base-X SFP

Power

Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
264.8 Watt

Miscellaneous

Included Accessories
4 rubber feet
Rack Mounting Kit
Included
Compliant Standards
FCC, RoHS

Software / System Requirements

Software Included
Drivers & Utilities
OS Required
UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows Vista / XP / 7 / 8

Dimensions & Weight

Width
44 cm
Depth
22 cm
Height
4.4 cm

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
