Power over Ethernet
8 of the 11 auto-negotiation RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant powered devices (PDs). -
Overload arrangement
TL-SL1210MP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs' power consumption is too large, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port. -
Intelligent power management
Priority (port 1 > port 2 >...> port 7 > port 8): this function will help protect the system when the system power is overloaded. For example, ports 1, 2, 3 and 5 are using 30 W (maximum power per port is 30 W); the system power now is 120 W in total. If there is an additional PD inserted to port 4 with 30 W, the system will cut off the power of port 4 because of the overloaded power, this means port 1, 2, 3 and 4 will use 30 W, no power will be supplied to port 5. -
Easy to use
TL-SL1210MP is easy to install and use. It requires no configuration or installation. With desktop and wall mountable design, outstanding performance and quality, TL-SL1210MP is a great selection for expanding your network.
Specifications
Summary
- Product Description

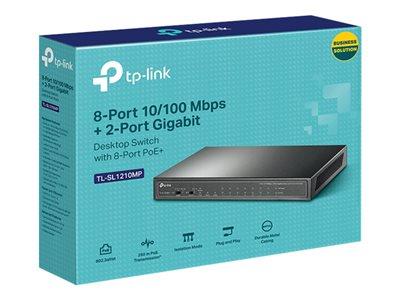

- TP-Link TL-SL1210MP - switch - 10 ports - unmanaged
- Device Type
- Switch - 10 ports - unmanaged
- Subtype
- Fast Ethernet
- Ports
- 8 x 10/100 (PoE+) + 2 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 124 W
- Performance
- Switching capacity: 5.6 Gbps , Packet forwarding rate: 4.166 Mpps
- MAC Address Table Size
- 2K entries
- Jumbo Frame Support
- 16KB
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, fanless, extend mode
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
- Dimensions (WxDxH)
- 20.9 cm x 12.6 cm x 2.6 cm
Detailed Specification
General
- Device Type
- Switch - 10 ports - unmanaged
- Enclosure Type
- Desktop
- Subtype
- Fast Ethernet
- Ports
- 8 x 10/100 (PoE+) + 2 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 124 W
- Performance
- Switching capacity: 5.6 Gbps , Packet forwarding rate: 4.166 Mpps
- MAC Address Table Size
- 2K entries
- Jumbo Frame Support
- 16KB
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, fanless, extend mode
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
- Status Indicators
- Power, PoE, link/activity, PoE max
Expansion / Connectivity
- Interfaces
- 8 x 100Base-TX RJ-45 PoE+ - 30 W , 1 x Gigabit LAN SFP , 1 x 1000Base-T RJ-45
Power
- Power Device
- External power adapter
Miscellaneous
- Compliant Standards
- Plug and Play, FCC, ANSI/TIA-568
Dimensions & Weight
- Width
- 20.9 cm
- Depth
- 12.6 cm
- Height
- 2.6 cm
