Description
The TL-SF1005D Fast Ethernet switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 5-port support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the energy-efficient technology, the TL-SF1005D is an eco-friendly solution for your business network.
-
High performance
TL-SF1005D Fast Ethernet switch provides 5 10/100 Mbps auto-negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or uplink ports. Featuring non-blocking switching architecture, TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably. -
Easy to use
The auto features of this gigabit switch make installation Plug and Play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance.
Specifications
Summary
- Product Description

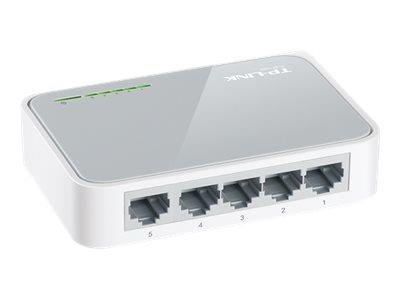

- TP-Link TL-SF1005D - V13 - switch - 5 ports - unmanaged
- Device Type
- Switch - 5 ports - unmanaged
- Subtype
- Fast Ethernet
- Ports
- 5 x 10/100
- Performance
- Switching capacity: 1 Gbps
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, fanless
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Power
- AC 230V (50 Hz)
- Dimensions (WxDxH)
- 10.35 cm x 7 cm x 2.2 cm
Detailed Specification
General
- Device Type
- Switch - 5 ports - unmanaged
- Enclosure Type
- Desktop
- Subtype
- Fast Ethernet
- Ports
- 5 x 10/100
- Performance
- Switching capacity: 1 Gbps
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, fanless
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Expansion / Connectivity
- Interfaces
- 5 x 100Base-TX RJ-45
Power
- Power Device
- External power adapter
- Voltage Required
- AC 230V (50 Hz)
- Power Consumption Operational
- 1.87 Watt
Miscellaneous
- Compliant Standards
- Plug and Play, FCC, RoHS
Dimensions & Weight
- Width
- 10.35 cm
- Depth
- 7 cm
- Height
- 2.2 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
