Description

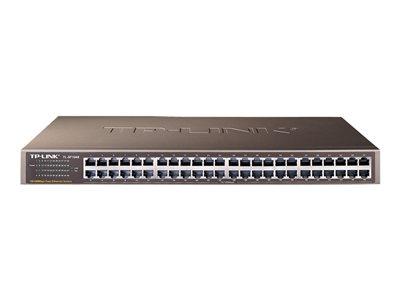

The TL-SF1048 Ethernet Switch provides 48 10/100M Auto-Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDIX function. Every port can work as uplink port or common port. TL-SF1048 Ethernet Switch provides a cost-effective, high performance, non-disruptive, smooth evolution into 100M solution. The switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience.
-
TP-LINK Green Technology
This TL-SF1048 10/100Mbps Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled. -
High performance
Featuring non-blocking switching architecture,TL-SF1048 forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1048 work reliably. -
Easy to use
The auto features of this Fast Ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
Summary
- Product Description
- TP-Link TL-SF1048 - switch - 48 ports - rack-mountable
- Device Type
- Switch - 48 ports
- Enclosure Type
- Rack-mountable
- Subtype
- Fast Ethernet
- Ports
- 48 x 10/100
- MAC Address Table Size
- 8K entries
- Features
- Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 44 cm x 26 cm x 4.4 cm
Detailed Specification
General
- Device Type
- Switch - 48 ports
- Enclosure Type
- Rack-mountable
- Subtype
- Fast Ethernet
- Ports
- 48 x 10/100
- MAC Address Table Size
- 8K entries
- Features
- Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Status Indicators
- Power, link/activity
Expansion / Connectivity
- Interfaces
- 48 x 100Base-TX RJ-45
Power
- Voltage Required
- AC 120/230 V (50/60 Hz)
Miscellaneous
- Compliant Standards
- FCC
Dimensions & Weight
- Width
- 44 cm
- Depth
- 26 cm
- Height
- 4.4 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90%
