Description
The XS716E is the ideal switch for SMBs considering simple and affordable 10-Gigabit Ethernet connectivity into their 10G-capable servers and storage devices. Customers can use Cat6 or Cat7 copper cables with standard RJ45 Ethernet jacks that are already widely used in their current network. Network speeds can improve up to 10x going from traditional Gigabit to 10-Gigabit with minimal network changes and upgrades.
Specifications
Summary
- Product Description

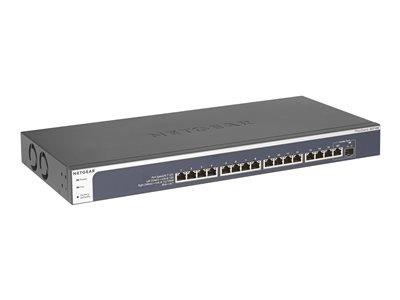

- NETGEAR Plus XS716E - switch - 16 ports - Managed - rack-mountable
- Device Type
- Switch - 16 ports - Managed
- Enclosure Type
- Rack-mountable
- Subtype
- 10 Gigabit Ethernet
- Ports
- 16 x 10GBase-T + 1 x shared 10 Gigabit SFP+
- Performance
- Switching fabric bandwidth: 320 Gbps , Forwarding performance (64-byte packet size): 238 Mpps
- Capacity
- Virtual interfaces (VLANs): 128 , IGMP groups: 128 , Priority queues per port: 8
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9KB
- Remote Management Protocol
- HTTP, TFTP
- Features
- Flow control, full duplex capability, Layer 2 switching, auto-negotiation, trunking, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, Multicast Storm Control, firmware upgradable, Quality of Service (QoS), Jumbo Frames support, IPv4 support, DHCP client, Energy Efficient Ethernet, 2MB packet buffer, loop prevention, Class of Service (CoS), security lock slot (cable lock sold separately), Type of Service (ToS), DiffServ Code Point (DSCP) support, 2 fans, cable test
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 44 cm x 20.4 cm x 4.3 cm
- Weight
- 3.2 kg
- Localisation
- Latin America, North America, Europe
- Manufacturer Warranty
- NETGEAR lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 16 ports - Managed
- Enclosure Type
- Desktop, rack-mountable
- Subtype
- 10 Gigabit Ethernet
- Ports
- 16 x 10GBase-T + 1 x shared 10 Gigabit SFP+
- Performance
- Switching fabric bandwidth: 320 Gbps , Forwarding performance (64-byte packet size): 238 Mpps
- Capacity
- Virtual interfaces (VLANs): 128 , IGMP groups: 128 , Priority queues per port: 8
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9KB
- Remote Management Protocol
- HTTP, TFTP
- Features
- Flow control, full duplex capability, Layer 2 switching, auto-negotiation, trunking, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, Multicast Storm Control, firmware upgradable, Quality of Service (QoS), Jumbo Frames support, IPv4 support, DHCP client, Energy Efficient Ethernet, 2MB packet buffer, loop prevention, Class of Service (CoS), security lock slot (cable lock sold separately), Type of Service (ToS), DiffServ Code Point (DSCP) support, 2 fans, cable test
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az
- Status Indicators
- Port transmission speed, power, link/activity, fan
Expansion / Connectivity
- Interfaces
- 16 x 10GBase-T RJ-45 , 1 x 10GBase-X SFP+
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 62.7 Watt
Miscellaneous
- Included Accessories
- Rubber feet
- Rack Mounting Kit
- Included
- MTBF
- 348,257 hours
- Compliant Standards
- cUL, CCC, UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, KC, ANSI C63.4, EAC, CNS 13438, IEC 60950-1:2005 Second Edition, EN 55024:2010, AS/NZS CISPR22:2009+A1:2010, EN 55022:2010/AC:2011, ICES-003 issue 5 Class A, IEC 60950-1:2005 + A1:2009 + A2:2013, AS/NZS 60950-1:2011, FCC CFR47 Part 15 B Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
- Localisation
- Latin America, North America, Europe
Software / System Requirements
- Software Included
- ProSAFE Plus Configuration Utility
Dimensions & Weight
- Width
- 44 cm
- Depth
- 20.4 cm
- Height
- 4.3 cm
- Weight
- 3.2 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime - response time: next business day , Product info support - web support - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
