Description
The NETGEAR 300 Series Unmanaged Switches provide easy and affordable network connectivity to home and small offices. They are easy to use and reliable. With these Plug-and-Play switches, you can expand your network connections to multiple devices instantly. The 300 series also support the efficient use of energy, helping you save power and money.
Specifications
Summary
- Product Description

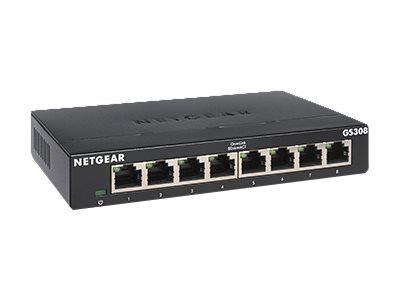

- NETGEAR GS308v3 - switch - 8 ports - unmanaged
- Device Type
- Switch - 8 ports - unmanaged
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000
- Performance
- Bandwidth: 16 Gbps , Forwarding performance (64-byte packet size): 1448000 pps
- Capacity
- Packet buffer size: 128
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9216 bytes
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), fanless, Energy Efficient Ethernet, SOHO (Small Office/Home Office), Weighted Round Robin (WRR)
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
- Dimensions (WxDxH)
- 15.8 cm x 10.1 cm x 2.9 cm
- Weight
- 390 g
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports - unmanaged
- Enclosure Type
- Desktop, wall-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000
- Performance
- Bandwidth: 16 Gbps , Forwarding performance (64-byte packet size): 1448000 pps
- Capacity
- Packet buffer size: 128
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9216 bytes
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), fanless, Energy Efficient Ethernet, SOHO (Small Office/Home Office), Weighted Round Robin (WRR)
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
- Status Indicators
- Power, link/activity
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45
Power
- Power Device
- External power adapter
- Power Consumption Operational
- 3.04 Watt
- Power Consumption Stand by
- 0.36 Watt
Miscellaneous
- MTBF
- 3,711,898 hours
- Compliant Standards
- Plug and Play, IC Class B, VCCI, CB, FCC Part 15 B, CCC, LVD, KC, RCM
Dimensions & Weight
- Width
- 15.8 cm
- Depth
- 10.1 cm
- Height
- 2.9 cm
- Weight
- 390 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 95% (non-condensing)
