Description
GS728TP is Gigabit PoE/ PoE+ Smart Switche that comes with PoE capabilities on all ports and supports PoE+ with up to 30W of power budget on the first 8 ports, providing hardware investment protections so that the switch can support many more PoE powered devices and higher-powered devices down the road. There has also been an addition of high-powered PoE+ Smart Switch into the portfolio. It also comes with 4 dedicated Gigabit SFP ports for fiber connectivity.
-
Designed for converged network, big or small
Gigabit Speed with all ports capable of support either PoE or PoE+. Auto Voice VLAN for fast and reliable deployment of VoIP. Auto Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance system. Static routing, helps to route internal traffic for more efficient use of network resources. IGMP and MLD snooping, providing advanced multicast filtering. -
Build a future-proof network with NETGEAR
Solid performance with non-blocking architecture, 8K MAC addresses, 256 VLANs, 480 shared ACL entries, 32static routes, and 1,024 Multicast Groups. Comprehensive IPv6 supporting management, QoS and ACL, ensuring investment protection and a smooth migration to IPv6-based network. PoE+ support on all models with GS728TPP support PoE+ on all ports, providing flexibility in the future to add power-hungry devices such as video phone, PTZ camera and 11ac Wireless APs into the network. 4 dedicated SFPs, not only providing fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for network virtualization. Energy Efficient Ethernet (IEEE802.3az) support for more energy saving in the future when more EEE-compliant end devices come to market. Advanced QoS with IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ). Dynamic VLAN assignment for easy user authentication and location-independent access to network. -
Network development made easy
Auto Voice VLAN for easy development of VoIP. Auto Video for simple deployment of IP Surveillaince. ACL Wizard for a guided tour to set up your network access control. Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrade. PoE Timer for scheduling on/off time of your PoE powered devices. With PD and PoE capability on the same device, GS516TP make network switch deployment truly free from AC power outlet. It provides maximum flexibility for network build-up, modifications and re-layout.
Specifications
Summary
- Product Description

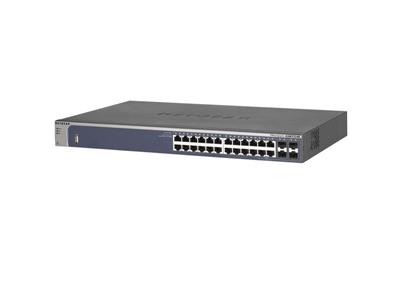

- NETGEAR Smart GS728TP - switch - 24 ports - Managed - rack-mountable
- Device Type
- Switch - 24 ports - L3 Lite - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 16 x 10/100/1000 (PoE) + 4 x SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 192 W
- Performance
- Bandwidth: 56 Gbps
- Capacity
- Virtual interfaces (VLANs): 256 , ACL entries: 480 , Layer 2 multicast groups: 1024 , Static routes: 32 , Priority queues per port: 4
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, HTTP, HTTPS, TFTP
- Features
- Flow control, auto-sensing per device, DHCP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, LLDP support, Port Security, DHCP client, Strict Priority Queuing (SPQ), static routing, Class of Service (CoS), 8MB packet buffer, 802.1x authentication, Type of Service (ToS), VoIP support, DiffServ Code Point (DSCP) support, cable test, administrator's password
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
- Dimensions (WxDxH)
- 44 cm x 25.7 cm x 4.4 cm
- Weight
- 3.73 kg
- Localisation
- Europe
- Manufacturer Warranty
- NETGEAR lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 24 ports - L3 Lite - Managed
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 16 x 10/100/1000 (PoE) + 4 x SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 192 W
- Performance
- Bandwidth: 56 Gbps
- Capacity
- Virtual interfaces (VLANs): 256 , ACL entries: 480 , Layer 2 multicast groups: 1024 , Static routes: 32 , Priority queues per port: 4
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, HTTP, HTTPS, TFTP
- Encryption Algorithm
- SSL, TLS 1.0
- Authentication Method
- RADIUS, TACACS+
- Features
- Flow control, auto-sensing per device, DHCP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, LLDP support, Port Security, DHCP client, Strict Priority Queuing (SPQ), static routing, Class of Service (CoS), 8MB packet buffer, 802.1x authentication, Type of Service (ToS), VoIP support, DiffServ Code Point (DSCP) support, cable test, administrator's password
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
- Status Indicators
- Port transmission speed, power, PoE, link/activity, fan
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45 8 ports (PoE+) / 16 ports (PoE) , 4 x 1000Base-X SFP uplink
Power
- Power Device
- Internal power supply
- Power Consumption Operational
- 264 Watt
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 345,901 hours
- Compliant Standards
- cUL, EN 60950, IEC950, UL 1950, EN55024, CSA 22.2 No. 950, EN55022 Class A, CISPR 22, EN50082-1, CCC, FCC Part 15 A, C-Tick Class A, VCCI Class A, TLS v1.0
- Localisation
- Europe
Software / System Requirements
- Software Included
- Drivers & Utilities
Dimensions & Weight
- Width
- 44 cm
- Depth
- 25.7 cm
- Height
- 4.4 cm
- Weight
- 3.73 kg
Manufacturer Warranty
- Service & Support
- NETGEAR lifetime warranty
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 95% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
