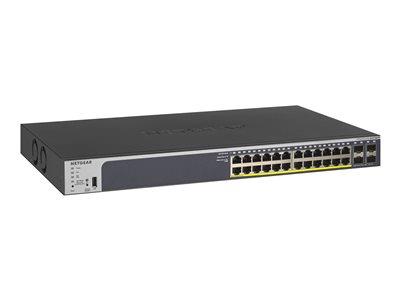

NETGEAR 28-port Managed Gigabit POE+ Smart Switch

Review this product
Quicklinx: DWDQWS00 Mfr#: GS728TP-200EUS
Type: Gigabit Ethernet
Ports: 24
Managed: Yes
POE: PoE+
Ordered upon request
£259.21 ex VAT
£311.05 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

The ProSafe Gigabit stackable smart switch family is unique in delivering the scalability, reliability, and performance growing small and medium-sized businesses need in an affordable and easy-to-manage package. This stackable smart switch offers more flexibility and scalability that will make it easier and non-interruptive for growing businesses to expand their network capacity.

  • Designed for converged network, big or small

    Gigabit Speed with all ports capable of support either PoE or PoE+. Auto Voice VLAN for fast and reliable deployment of VoIP. Auto Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance system. Static routing, helps to route internal traffic for more efficient use of network resources. IGMP and MLD snooping, providing advanced multicast filtering.
  • Build a future-proof network with NETGEAR

    Solid performance with non-blocking architecture, 8K MAC addresses, 256 VLANs, 480 shared ACL entries, 32static routes, and 1,024 Multicast Groups. Comprehensive IPv6 supporting management, QoS and ACL, ensuring investment protection and a smooth migration to IPv6-based network. PoE+ support on all models with GS728TPP support PoE+ on all ports, providing flexibility in the future to add power-hungry devices such as video phone, PTZ camera and 11ac Wireless APs into the network. 4 dedicated SFPs, not only providing fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for network virtualization. Energy Efficient Ethernet (IEEE802.3az) support for more energy saving in the future when more EEE-compliant end devices come to market. Advanced QoS with IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ). Dynamic VLAN assignment for easy user authentication and location-independent access to network.
  • Network development made easy

    Auto Voice VLAN for easy development of VoIP. Auto Video for simple deployment of IP Surveillaince. ACL Wizard for a guided tour to set up your network access control. Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrade. PoE Timer for scheduling on/off time of your PoE powered devices. With PD and PoE capability on the same device, GS516TP make network switch deployment truly free from AC power outlet. It provides maximum flexibility for network build-up, modifications and re-layout.

Specifications

Summary

Product Description
NETGEAR Smart GS728TP - v2 - switch - 24 ports - smart - rack-mountable
Device Type
Switch - 24 ports - L3 - smart
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
190 W
Performance
Switch fabric speed: 56 Gbps , Forwarding performance (64-byte packet size): 41.67 Mpps
Capacity
ACL: 100 , ARP entries: 512 , VLANs supported: 256 , IPv4 routes (static): 32 , IPv6 routes (static): 32 , IGMP multicast groups: 512
MAC Address Table Size
16K entries
Jumbo Frame Support
10KB
Routing Protocol
Static IP routing
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
Features
DHCP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP snooping, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Multicast VLAN Registration (MVR), Generic Attribute Registration Protocol (GARP), GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), DiffServ Code Point (DSCP) support, 2 fans, 1.5MB packet buffer, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, Voice VLAN, Private VLAN, Guest VLAN, Denial of Service (DoS) protection, Weighted Round Robin (WRR), Auto VoIP, MAC lockdown
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
44 cm x 25.7 cm x 4.32 cm
Weight
3.78 kg
Localisation
Europe
Manufacturer Warranty
Limited lifetime warranty


Detailed Specification

General

Device Type
Switch - 24 ports - L3 - smart
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
190 W
Performance
Switch fabric speed: 56 Gbps , Forwarding performance (64-byte packet size): 41.67 Mpps
Capacity
ACL: 100 , ARP entries: 512 , VLANs supported: 256 , IPv4 routes (static): 32 , IPv6 routes (static): 32 , IGMP multicast groups: 512
MAC Address Table Size
16K entries
Jumbo Frame Support
10KB
Routing Protocol
Static IP routing
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
Encryption Algorithm
TLS
Authentication Method
RADIUS, TACACS+
Features
DHCP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP snooping, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Multicast VLAN Registration (MVR), Generic Attribute Registration Protocol (GARP), GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), DiffServ Code Point (DSCP) support, 2 fans, 1.5MB packet buffer, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, Voice VLAN, Private VLAN, Guest VLAN, Denial of Service (DoS) protection, Weighted Round Robin (WRR), Auto VoIP, MAC lockdown
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor
1: 700 MHz
RAM
128 MB
Flash Memory
32 MB
Status Indicators
Port transmission speed, PoE, link/activity

Expansion / Connectivity

Interfaces
24 x 10/100/1000 Base-T RJ-45 PoE+ , 4 x 1000Base-X SFP , 1 x USB

Power

Power Device
Internal power supply
Installed Qty
1
Voltage Required
AC 120/230 V (50/60 Hz)

Miscellaneous

Rack Mounting Kit
Included
MTBF
1,250,365 hours
Compliant Standards
EN 60950, EN55024, CSA 22.2 No. 950, CB, CCC, FCC Part 15 A, C-Tick Class A, VCCI Class A, FCC CFR47 Part 15 B Class A, IEC 950, ANSI C63.4-2014, EN 55022/CISPR 22 Class A, ICES-003:2016 issue 6 Class A, AS/NZS CISPR22:2009+A1:2010 Class A, AN/NZS 60950.1:2015, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Localisation
Europe

Dimensions & Weight

Width
44 cm
Depth
25.7 cm
Height
4.32 cm
Weight
3.78 kg

Manufacturer Warranty

Service & Support
Limited warranty - replacement - lifetime - response time: next business day , Technical support - phone consulting - 90 days

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
95% (non-condensing)
