Description
The Insight Managed Smart Cloud Gigabit Ethernet/10G SFP+ Switches are the first switches from NETGEAR with anywhere configuration and management. Using either the NETGEAR Insight app on your mobile device or tablet, or the Insight Cloud Portal from your PC, Mac, or tablet, you can quickly discover, setup, monitor and manage your Smart Cloud Switches from anywhere in the world! With their remote cloud manageability, sleek design, and combination of Gigabit copper, Gigabit SFP fiber, and 10G SFP+ fiber ports, Insight Managed Smart Cloud Switches are the most versatile switches in the market for any environment. Whether at home, out of the office or on a business trip, you can still manage and monitor your network as if you were right there.
-
Robust security
Equipped with Extensible Authentication Protocol (EAP), RADIUS, TACACS+, and advanced encryption algorithms including MD5, PEAP, SSL 3.0, and TLS 1.0, this switch ensures secure network access and data transmission. -
High-capacity networking
With support for up to 256 VLANs, 100 ACLs, and 512 IGMP multicast groups, alongside static routing for both IPv4 and IPv6, the NETGEAR Smart GC728XP is designed to handle extensive networking demands. -
Efficient power management
Featuring a generous PoE budget of 390 W and ENERGY STAR compliance, this switch optimizes power usage across all connected devices, reducing operational costs. -
High performance
Boasting a fabric throughput of 92 Gbps and forwarding performance of 68.5 Mpps, coupled with a 1.5MB packet buffer and a 16K MAC address table, the switch delivers high-speed data processing and transmission. -
Flexible connectivity
Offers a variety of ports including 24 RJ-45 connectors for 10/100/1000 Base-T (PoE+), 2 Gigabit SFP uplinks, and 2 10 Gigabit SFP+ uplinks, ensuring versatile connectivity options for a wide range of network architectures.
Specifications
Summary
- Product Description

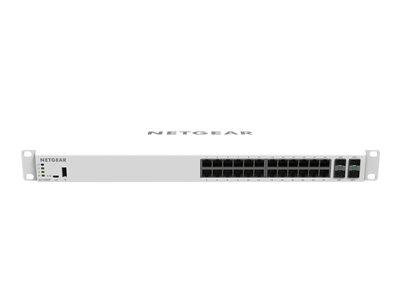

- NETGEAR Smart GC728XP - switch - 24 ports - smart - rack-mountable
- Device Type
- Switch - 24 ports - L3 - smart
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) + 2 x 10 Gigabit SFP+ (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 390 W
- Performance
- Fabric throughput: 92 Gbps , Forwarding performance (64-byte packet size): 68.5 Mpps
- Capacity
- ACL: 100 , VLANs supported: 256 , Priority queues: 8 , IGMP multicast groups: 512 , IPv4 routes (static): 32 , IPv6 routes (static): 31
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
- Features
- ARP support, IGMP snooping, Syslog support, SPI, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, LACP support, LLDP support, DHCP relay, DHCP client, Energy Efficient Ethernet, MVR, dual firmware images, SPQ, NDP, loop prevention, security lock slot (cable lock sold separately), ToS, DSCP support, 2 fans, 1.5MB packet buffer, cable test, administrator's password, ICMP Router Discovery Protocol (IRDP), DNS client, guest access, WRR, loopback detection
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
- Power
- AC 120/230 V (50 - 60 Hz)
- Dimensions (WxDxH)
- 44 cm x 22.4 cm x 4.4 cm
- Weight
- 3.79 kg
- Localisation
- United Kingdom, Europe
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Switch - 24 ports - L3 - smart
- Enclosure Type
- Desktop, rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) + 2 x 10 Gigabit SFP+ (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 390 W
- Performance
- Fabric throughput: 92 Gbps , Forwarding performance (64-byte packet size): 68.5 Mpps
- Capacity
- ACL: 100 , VLANs supported: 256 , Priority queues: 8 , IGMP multicast groups: 512 , IPv4 routes (static): 32 , IPv6 routes (static): 31
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
- Encryption Algorithm
- MD5, TLS 1.0, SSL 3.0, PEAP
- Authentication Method
- RADIUS, TACACS+, Extensible Authentication Protocol (EAP)
- Features
- ARP support, IGMP snooping, Syslog support, SPI, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, LACP support, LLDP support, DHCP relay, DHCP client, Energy Efficient Ethernet, MVR, dual firmware images, SPQ, NDP, loop prevention, security lock slot (cable lock sold separately), ToS, DSCP support, 2 fans, 1.5MB packet buffer, cable test, administrator's password, ICMP Router Discovery Protocol (IRDP), DNS client, guest access, WRR, loopback detection
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
- Processor
- 1 Cortex-A9: 400 MHz
- RAM
- 512 MB
- Flash Memory
- 256 MB
- Status Indicators
- Power, status, fan, link/activity/speed
Expansion / Connectivity
- Interfaces
- 24 x 10/100/1000 Base-T RJ-45 PoE+ , 2 x 1000Base-X SFP , 2 x 10GBase-X SFP+ , USB
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
- Power Consumption Operational
- 437.1 Watt
Miscellaneous
- Included Accessories
- Rubber feet
- Rack Mounting Kit
- Included
- MTBF
- 629,962 hours
- Compliant Standards
- CCC, UL 60950-1 Second Edition, KCC, K60950-1, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class A, GB 4943.1-2011, EN 55024:2010+A1:2015, KN32, KN35, BSMI CNS13438:2006 Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, CAN/CSA C22.2 No. 60950-1-07 Second Edition 2014, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2015 Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
- Localisation
- United Kingdom, Europe
Dimensions & Weight
- Width
- 44 cm
- Depth
- 22.4 cm
- Height
- 4.4 cm
- Weight
- 3.79 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - 5 years - response time: next business day , Limited warranty - power supply - 2 years , Technical support - 90 days
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 95% (non-condensing)
