Description
Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the switch gives the exact speed required, with no downgrade. Also, the NETGEAR Multi-Gigabit switch ports can connect regular CAT5e Ethernet cables, without the need to upgrade to CAT6 wiring, therefore reducing wiring costs and hassle. Access, aggregation or collapsed core: you can now have your PCs, printers and routers/firewalls connected at 1G and aggregate Multi-Gigabit Ethernet devices on the same switch, all line-rate. 10G copper and fiber ports are ready for local servers and storage, or high-speed aggregation to your network core.
-
Robust performance
With a bandwidth of 78 Gbps and a packet forwarding rate of 58 Mpps, this switch ensures efficient data flow and high-speed connectivity, making it suitable for handling large volumes of data with ease. -
Advanced security
Features such as Access Control List (ACL) support, 802.1x authentication, and Dynamic ARP Inspection (DAI) provide a secure network environment by protecting against unauthorized access and network threats. -
Versatile connectivity
Equipped with a variety of ports including 10/100/1000, 100/1000/2.5G/5G, and 10GBase-X SFP+, this switch offers flexible connection options for a wide range of devices and network configurations. -
Efficient management
Support for SNMP, RMON, and static IP routing allows for easy management and monitoring of network performance, ensuring optimal operation and quick troubleshooting. -
Durable and reliable
With an MTBF of 1,078,683 hours and a comprehensive range of compliant standards, this switch is built to last and perform reliably in various operational environments.
Specifications
Summary
- Product Description

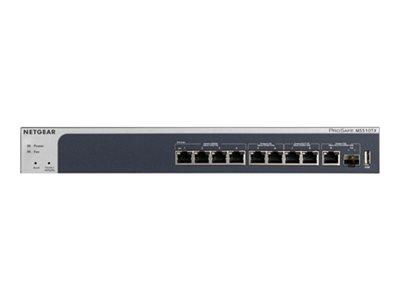

- NETGEAR Smart MS510TX - switch - 8 ports - smart - rack-mountable
- Device Type
- Switch - 8 ports - L3 Lite - smart
- Enclosure Type
- Rack-mountable
- Subtype
- 10 Gigabit Ethernet
- Ports
- 4 x 10/100/1000 + 2 x 100/1000/2.5G/5G + 2 x 100/1000/2.5G
- Performance
- Bandwidth: 78 Gbps , Latency (10 Gbps): < 2.36 µs , Latency (SFP+): < 2.6 µs , Packet forwarding rate: 58 Mpps
- Capacity
- LAG groups: 8 , MAC addresses: 16000 , ACL entries (ingress): 164 , Virtual interfaces (VLANs): 256 , RP/NDP table: 512 , IPv4 routes (static): 32 , IPv6 routes (static): 32 , IGMP multicast groups: 512 , ARP entries: 512 , VLAN routing interfaces: 32 , Jumbo frame size: 10000 , DHCP snooping entries: 1000 , Multicast groups: 512 , Priority queues: 8
- MAC Address Table Size
- 16K entries
- Routing Protocol
- Static IP routing
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, TFTP
- Features
- IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, RSTP support, MSTP support, ACL support, QoS, Jumbo Frames support, DAI, LACP support, LLDP support, Energy Efficient Ethernet, CoS, 802.1x authentication, ToS, DSCP support, 1.5MB packet buffer, MAC and IP-based ACLs support, 1 fan, Voice VLAN, VLAN management, Guest VLAN, WRR, Auto VoIP, MAC lockdown, IPv6 management
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, ITU-T H.323, IEEE 802.3bz
- Dimensions (WxDxH)
- 32.8 cm x 16.9 cm x 4.3 cm
- Weight
- 1.42 kg
- Localisation
- Europe
- Manufacturer Warranty
- ProSAFE lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports - L3 Lite - smart
- Enclosure Type
- Desktop, rack-mountable
- Subtype
- 10 Gigabit Ethernet
- Ports
- 4 x 10/100/1000 + 2 x 100/1000/2.5G/5G + 2 x 100/1000/2.5G
- Performance
- Bandwidth: 78 Gbps , Latency (10 Gbps): < 2.36 µs , Latency (SFP+): < 2.6 µs , Packet forwarding rate: 58 Mpps
- Capacity
- LAG groups: 8 , MAC addresses: 16000 , ACL entries (ingress): 164 , Virtual interfaces (VLANs): 256 , RP/NDP table: 512 , IPv4 routes (static): 32 , IPv6 routes (static): 32 , IGMP multicast groups: 512 , ARP entries: 512 , VLAN routing interfaces: 32 , Jumbo frame size: 10000 , DHCP snooping entries: 1000 , Multicast groups: 512 , Priority queues: 8
- MAC Address Table Size
- 16K entries
- Routing Protocol
- Static IP routing
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, TFTP
- Encryption Algorithm
- SSL
- Authentication Method
- RADIUS
- Features
- IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, RSTP support, MSTP support, ACL support, QoS, Jumbo Frames support, DAI, LACP support, LLDP support, Energy Efficient Ethernet, CoS, 802.1x authentication, ToS, DSCP support, 1.5MB packet buffer, MAC and IP-based ACLs support, 1 fan, Voice VLAN, VLAN management, Guest VLAN, WRR, Auto VoIP, MAC lockdown, IPv6 management
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, ITU-T H.323, IEEE 802.3bz
- Processor
- : 800 MHz
- RAM
- 512 MB
- Flash Memory
- 256 MB
- Status Indicators
- Power, fan, link/activity/speed
Expansion / Connectivity
- Interfaces
- 4 x 1000Base-T RJ-45 , 2 x 100/1000/2.5G/5G RJ-45 , 2 x 100/1000/2.5G , 1 x 100/1000/2.5G/5G/10GBase-T dedicated , 1 x 10GBase-X SFP+ dedicated , USB
Power
- Power Device
- Internal power supply
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 1,078,683 hours
- Compliant Standards
- EN 60950, UL 1950, ANSI C63.4, EN 60950-1:2006, IEC 60950-1:2005, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, EN 61000-3-2:2014, FCC CFR47 Part 15 A, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012, CNS 14336-1, IEC 950, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A
- Localisation
- Europe
Dimensions & Weight
- Width
- 32.8 cm
- Depth
- 16.9 cm
- Height
- 4.3 cm
- Weight
- 1.42 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime - response time: next business day , Limited warranty - phone consulting - 90 days
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
