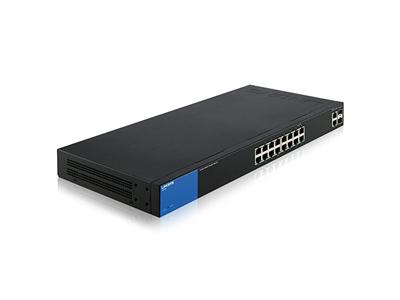

Linksys LGS318-UK 16-Port Smart Switch

Linksys LGS318-UK 16-Port Smart Switch

Review this product
Quicklinx: 9DXWWS00 Mfr#: LGS318-UK
Type: Gigabit Ethernet
Ports: 18
Data Transfer Rate: 1Gbps
Managed: Yes
POE: No
Ordered upon request
£110.65 ex VAT
£132.78 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

Get the network performance your business deserves with the smart Gigabit switches from Linksys. Designed for business-class management, security, speed, and quality of service, Linksys smart Gigabit switches provide a network your business can grow on.

  • Quality of Service (QoS)

    Numerous QoS features ensure that traffic is prioritized properly to deliver the best possible user experience for real-time applications like voice and video along with bandwidth-intensive graphic/video file uploads and downloads. IGMP snooping limits IP multicast traffic to the ports that requested it, enabling the rest of the network to operate at peak efficiency.
  • Network security

    Port authentication prompts end-users to provide a username and password before they are permitted to pass data. User access can also be controlled through MAC filtering, which allows network access only to authorized devices or workstations. Port mirroring enables you to monitor the type of traffic being transmitted on the network.
  • Network expansion

    Linksys smart switches include features for quickly expanding and growing your network. Multiple high-bandwidth trunks between switches enhance availability and redundancy. Spanning Tree Protocol (STP) and storm control features help control planned or inadvertent cable loops, so you can confidently build a mesh of switches and quickly expand your network to support your growing workforce.

Specifications

Summary

Product Description
Linksys Business Smart LGS318 - switch - 18 ports - Managed - rack-mountable
Device Type
Switch - 18 ports - Managed
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
16 x 10/100/1000 + 2 x combo Gigabit SFP
Performance
Switching capacity: 36 Gbps , Forwarding performance: 26.79 Mpps
Capacity
MAC addresses: 8000 , Active VLANs: 128 , QoS hardware entries: 4
MAC Address Table Size
8K entries
Jumbo Frame Support
9000 bytes
Routing Protocol
IGMPv2, IGMP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 2c, HTTP, HTTPS, TFTP
Features
Flow control, DHCP support, VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Quality of Service (QoS), RADIUS support, Jumbo Frames support, LACP support, Port Security, IP-MAC binding, DHCP client, Dynamic VLAN Support (GVRP), Class of Service (CoS), tagged VLAN, 802.1x authentication, DiffServ Code Point (DSCP) support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
Power
AC 100/230 V (50/60 Hz)
Dimensions (WxDxH)
44 cm x 20 cm x 4.4 cm
Weight
2.378 kg
Localisation
United Kingdom
Manufacturer Warranty
Limited lifetime warranty


Detailed Specification

General

Device Type
Switch - 18 ports - Managed
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
16 x 10/100/1000 + 2 x combo Gigabit SFP
Performance
Switching capacity: 36 Gbps , Forwarding performance: 26.79 Mpps
Capacity
MAC addresses: 8000 , Active VLANs: 128 , QoS hardware entries: 4
MAC Address Table Size
8K entries
Jumbo Frame Support
9000 bytes
Routing Protocol
IGMPv2, IGMP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 2c, HTTP, HTTPS, TFTP
Authentication Method
RADIUS
Features
Flow control, DHCP support, VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Quality of Service (QoS), RADIUS support, Jumbo Frames support, LACP support, Port Security, IP-MAC binding, DHCP client, Dynamic VLAN Support (GVRP), Class of Service (CoS), tagged VLAN, 802.1x authentication, DiffServ Code Point (DSCP) support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
RAM
128 MB
Status Indicators
System, link/activity

Expansion / Connectivity

Interfaces
18 x 1000Base-T RJ-45 , 2 x SFP

Power

Voltage Required
AC 100/230 V (50/60 Hz)

Miscellaneous

Localisation
United Kingdom

Dimensions & Weight

Width
44 cm
Depth
20 cm
Height
4.4 cm
Weight
2.378 kg

Manufacturer Warranty

Service & Support
Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90%
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 90% (non-condensing)
