Description
The unmanaged switch offers gigabit speeds to minimize transfer times and greatly enhance the ability to stream high-bandwidth files to connected devices without interference.
PoE support lets you deploy network systems such as wireless access, IP telephony, or video surveillance solutions more quickly and at a lower cost, without having to install separate power supplies for individual devices.
-
Gigabit performance
The unmanaged switch offers gigabit speeds to minimize transfer times and greatly enhance the ability to stream high-bandwidth files to connected devices without interference. -
Power where you need it
PoE support lets you deploy network systems such as wireless access, IP telephony, or video surveillance solutions more quickly and at a lower cost, without having to install separate power supplies for individual devices. -
Plug and Play convenience
Linksys unmanaged switches offer a quick and easy solution to extend your office network with Plug-and-Play installation. -
Quality of Service (QoS) traffic prioritization
QoS traffic prioritization gives precedence to particular devices or activities to ensure mission-critical data throughput is maintained regardless of network congestion. Auto-sensing ports automatically optimize speed for each connected device.
Specifications
Summary
- Product Description

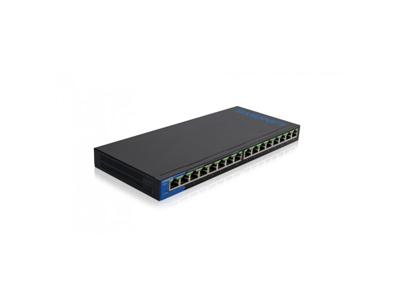

- Linksys Business LGS116P - switch - 16 ports - unmanaged
- Device Type
- Switch - 16 ports - unmanaged
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 8 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 80 W
- Performance
- Bandwidth: 32 Gbps
- MAC Address Table Size
- 8000 entries
- Features
- Auto-sensing per device, Quality of Service (QoS), fanless, DiffServ Code Point (DSCP) support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Power
- AC 100/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 28 cm x 12 cm x 2.5 cm
- Weight
- 822 g
- Localisation
- United Kingdom
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 16 ports - unmanaged
- Enclosure Type
- Desktop, wall-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 8 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 80 W
- Performance
- Bandwidth: 32 Gbps
- MAC Address Table Size
- 8000 entries
- Features
- Auto-sensing per device, Quality of Service (QoS), fanless, DiffServ Code Point (DSCP) support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Status Indicators
- Port transmission speed, PoE, link/activity
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 PoE+ , 8 x 1000Base-T RJ-45
Power
- Power Device
- External power adapter
- Voltage Required
- AC 100/230 V (50/60 Hz)
- Power Consumption Operational
- 11.31 Watt
Miscellaneous
- Compliant Standards
- Plug and Play, FCC Class A certified
- Localisation
- United Kingdom
Dimensions & Weight
- Width
- 28 cm
- Depth
- 12 cm
- Height
- 2.5 cm
- Weight
- 822 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 10 - 90% (non-condensing)
