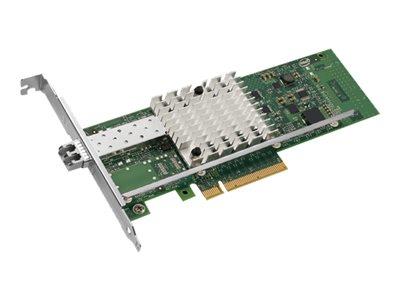

Intel Ethernet Server Adapter X520-LR1 - Netwrk adapter

Intel Ethernet Server Adapter X520-LR1 - Netwrk adapter

Review this product
Quicklinx: 67NFWS00 Mfr#: E10G41BFLR
Wired / Wireless: Wired
Protocol: 10 Gigabit Ethernet
Form Factor: Plug-in card
Compatibility: PC, Unix
Type: Network adapter
Ordered upon request
£566.07 ex VAT
£679.28 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

The Intel Ethernet 10 Gigabit Converged Network Adapter X520-LR1 enables data center transformation by delivering a reliable, unified 10GbE long range fiber optic connection. Advanced platform scalability features include: Receive Side Coalescing, Intel Ethernet Flow Director, and support for PCI Express Gen2. Intel VT-c delivers industry-leading I/O virtualization capabilities, including support for Single Route I/O virtualization (SR-IOV) and Virtual Machine Device Queues (VMDq). The Intel Ethernet Converged Network Adapter X520 provides advanced unified networking capabilities, including support for iSCSI, NFS, and FCoE. The Intel Ethernet Converged Network Adapter X520 facilitates greater network infrastructure consolidation and is the best choice for I/O virtualization. Intel Ethernet - It Just Works!

  • Low-profile

    Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers.
  • Load balancing on multiple CPUs

    Increases performance on multi-processor systems by efficiently balance CPU cores when used with Receive-Side Scaling (RSS) from Microsoft or scalable I/O on Linux.
  • ISCSI remote boot support

    Provides centralized storage area network (SAN) management at a lower cost than other iSCSI solutions.
  • Intel Direct Cache Access (DCA)

    Enables the adapter to pre-fetch the data from memory, avoiding cache misses and improving application response time.
  • MSI-X support

    Minimizes the overhead of interrupts. Load-balancing of interrupt handling between multiple cores/CPUs.
  • Low latency interrupts

    Based on the sensitivity of the incoming data, the adapter can bypass the automatic moderation of time intervals between the interrupts.
  • Header splits and replication in receive

    Helps the driver focus on the relevant part of the packet without the need to parse it.
  • IPsec offload

    Offloads IPsec capability onto the adapter instead of the software to significantly improve I/O throughput and CPU usage.
  • Virtual Machine Load Balancing (VLMB)

    Virtual Machines Load Balancing (VMLB) provides traffic load balancing across virtual switch, port, cable, or adapter failure.
  • Watchdog timer

    Gives an indication to the manageability firmware or external devices that the chip or the driver is not functioning.

Specifications

Summary

Product Description
Intel Ethernet Converged Network Adapter X520-LR1 - network adapter
Device Type
Network adapter
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 2.0 x8
Ports
10GBase-LR
Dimensions (WxDxH)
14.5 cm
Cabling Type
Ethernet 10GBase-LR
Data Link Protocol
10 GigE
Max Transfer Distance
10 km
Data Transfer Rate
10 Gbps
Network / Transport Protocol
TCP/IP, UDP/IP, IPSec, iSCSI
Processor
82599ES - Intel
Compliant Standards
IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1ae, IEEE 802.1as
Manufacturer Warranty
Limited lifetime warranty


Detail

General

Device Type
Network adapter
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 2.0 x8

Networking

Ports
10GBase-LR
Connectivity Technology
Wired
Cabling Type
Ethernet 10GBase-LR
Data Link Protocol
10 GigE
Data Transfer Rate
10 Gbps
Max Transfer Distance
10 km
Network / Transport Protocol
TCP/IP, UDP/IP, IPSec, iSCSI
Remote Management Protocol
SNMP, RMON
Status Indicators
Port transmission speed, link OK, link/activity
Features
Flow control, VLAN support, packet filtering, Quality of Service (QoS), Virtual Machine Device Queues (VMDq)
Compliant Standards
IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1ae, IEEE 802.1as

Processor / Memory

Processor
82599ES - Intel

Expansion / Connectivity

Interfaces
1 x 10GBase-LR - LC single-mode - x 2
Compatible Slots
1 x PCI Express 2.0 x8 - full-length, low-profile

Miscellaneous

Compliant Standards
FCC Class B certified, UL, VCCI, C-Tick, BSMI, RoHS

Dimensions & Weight

Depth
14.5 cm

Manufacturer Warranty

Service & Support
Limited warranty - lifetime , Limited warranty - money back guarantee - 90 days

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
