Description
Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot. Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot, to help deliver a high-performance and cost-effective network solution.

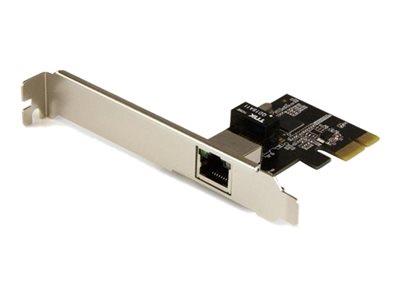

This Gigabit Ethernet network card utilizes the Intel I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking. It's a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed.
Specifications
Summary
- Product Description
- StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC - Single Port PCIe Network Adapter Card with Intel Chipset (ST1000SPEXI) - network adapter - PCIe
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express x1
- Dimensions (WxDxH)
- 6.6 cm x 12 cm x 1.8 cm
- Weight
- 35 g
- Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
- Data Link Protocol
- 1GbE
- Data Transfer Rate
- 1 Gbps
- Performance
- Forwarding performance (full duplex): 2 Gbps
- Capacity
- Jumbo frame size: 9000
- Processor
- Intel I210-AT
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
- Colour
- Black
- System Requirements
- Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express x1
Networking
- Connectivity Technology
- Wired
- Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
- Data Link Protocol
- Gigabit Ethernet
- Data Transfer Rate
- 1 Gbps
- Performance
- Forwarding performance (full duplex): 2 Gbps
- Capacity
- Jumbo frame size: 9000
- Status Indicators
- Port status, link/activity
- Features
- Full duplex capability, auto-uplink (auto MDI/MDI-X), Jumbo Frames support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Processor / Memory
- Processor
- Intel I210-AT
Expansion / Connectivity
- Interfaces
- 1 x network - RJ-45
Miscellaneous
- Included Accessories
- Low-profile bracket
- Compliant Standards
- FCC, RoHS
- Colour
- Black
Power
- Power Consumption Operational
- 0.8 Watt
Software / System Requirements
- OS Required
- Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
Dimensions & Weight
- Width
- 6.6 cm
- Depth
- 12 cm
- Height
- 1.8 cm
- Weight
- 35 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 20 - 80%
