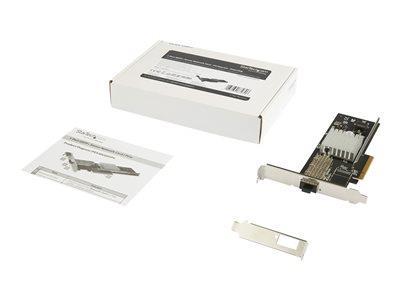

StarTech.com QSFP+ Network Card - PCIe

StarTech.com QSFP+ Network Card - PCIe

Review this product
Quicklinx: F6TJWS00 Mfr#: PEX40GQSFPI
Wired / Wireless: Wired
Protocol: 40 Gigabit Ethernet
Type: Network adapter
Ordered upon request
£303.05 ex VAT
£363.66 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

Get fast, high-bandwidth connectivity with this QSFP+ server network card. The converged network adapter adds an open QSFP+ slot to your server or workstation. The 40Gb NIC features an Intel controller and provides reliable performance. It's ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.

This QSFP+ server NIC lets you take advantage of the speed and stability of a 40 Gigabit Ethernet network, with data transfers of up to 40Gbps.

With an open QSFP+ slot, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.

The 40Gb NIC uses an Intel XL710 chipset, providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.

  • Increase Your Network Speed

    This QSFP+ server NIC lets you take advantage of the speed and stability of a 40 Gigabit Ethernet network, with data transfers of up to 40Gbps.
  • Add Scalable Network Connections

    With an open QSFP+ slot, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.
  • Enhance Your Network Capabilities

    The 40Gb NIC uses an Intel XL710 chipset, providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.
  • Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

    Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: •Text | Mac Address Pass-Through Utility : To improve network security. •Text | Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

Specifications

Summary

Product Description
StarTech.com Dual Port 40G QSFP+ Network Card, Intel XL710 Open QSFP+ Converged Adapter, PCIe 40 Gigabit Ethernet Server NIC, 40GbE Fiber Optic LAN Card, Dell PowerEdge HPE ProLiant, 40Gb - Network Interface Card (PEX40GQSFPI) - network adapter - PCIe 3.0 x8 - 40 Gigabit QSFP+ x 1
Device Type
Network adapter
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 3.0 x8
PCI Specification Revision
PCIe 3.0
Ports
40 Gigabit QSFP+ x 1
Dimensions (WxDxH)
12.1 cm x 18.1 cm x 2 cm
Weight
112 g
Cabling Type
Ethernet 40GBASE-SR4, Ethernet 40GBase-LR4
Data Link Protocol
40 Gigabit LAN
Capacity
Jumbo frame size: 9000
Network / Transport Protocol
IPv4, IPv6
Processor
Intel
Compliant Standards
IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ba
Colour
Black
System Requirements
Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Microsoft Windows Server 2016 (64-bit), Linux 2.6.24 - 4.11.x (64-bit) LTS versions
Manufacturer Warranty
2-year warranty


Detailed Specification

General

Device Type
Network adapter
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 3.0 x8
PCI Specification Revision
PCIe 3.0

Networking

Ports
40 Gigabit QSFP+ x 1
Connectivity Technology
Wired
Cabling Type
Ethernet 40GBASE-SR4, Ethernet 40GBase-LR4
Data Link Protocol
40 Gigabit Ethernet
Capacity
Jumbo frame size: 9000
Network / Transport Protocol
IPv4, IPv6
Status Indicators
Link/activity
Features
Flow control, full duplex capability, auto-uplink (auto MDI/MDI-X), Jumbo Frames support, Link Aggregation, VLAN Tagging
Compliant Standards
IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ba

Processor / Memory

Processor
Intel

Expansion / Connectivity

Interfaces
1 x 40GBase-LR4/40GBase-SR4 - QSFP+ - female

Miscellaneous

Included Accessories
Low-profile bracket
Compliant Standards
FCC, RoHS
Colour
Black

Software / System Requirements

OS Required
Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Microsoft Windows Server 2016 (64-bit), Linux 2.6.24 - 4.11.x (64-bit) LTS versions

Dimensions & Weight

Width
12.1 cm
Depth
18.1 cm
Height
2 cm
Weight
112 g

Dimensions & Weight (Shipping)

Shipping Weight
200 g

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
57 °C
Humidity Range Operating
5 - 95%
