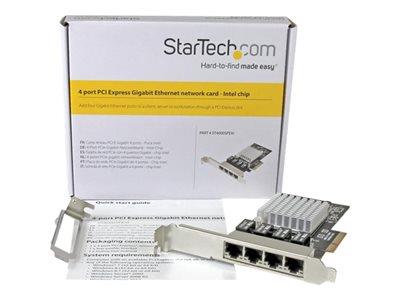

StarTech.com 4-Port Gigabit NIC - PCIe

Review this product
Quicklinx: BJWWWS00 Mfr#: ST4000SPEXI
Wired / Wireless: Wired
Protocol: Gigabit Ethernet
Compatibility: Unix
Type: Network adapter
Stock Status: In Stock
  • Windows 8.1 (32/64 bits)
  • Windows 8 (32/64 bits)
10 in stock
£187.26 ex VAT
£224.71 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

Add four Gigabit Ethernet ports to a client, server or workstation through a single PCI Express slot. Here's a dependable and cost-effective way to add four high-performance Gigabit Ethernet ports to your server or desktop computer, through one PCI Express slot.

This Gigabit Ethernet network card features the Intel I350-AM4 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip provides a number of advanced driver options including IEEE 802.3ad link aggregation / teaming support, which enables you to add additional bandwidth to your system.

Compliant with IEEE 802.3/u/ab standards, the network card provides full support for high-performance, four-channel networking and maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

The quad-port Gigabit network card makes it easy to access multiple networks. It offers a cost-effective solution for IT professionals in government, educational, corporate, health care, or business environments where access to multiple networks from numerous workstations is needed. The server adapter card gives you four redundant, independent Gigabit Ethernet ports and it supports advanced features such as Jumbo Frames and VLAN tagging.

Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is suitable for many business and enterprise applications - including virtualized environments with multiple operating systems, requiring multiple shared or dedicated NICs. The 4-port Gigabit network card is equipped with Intel Virtualization Technology for Connectivity (Intel VT-c) which reduces system latency and improves networking throughput. Four dedicated ports allow you to maximize your virtualized server's networking efficiency and create a more agile data center.

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card is equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.

Specifications

Summary

Product Description
StarTech.com 4-Port Gigabit Ethernet Network Card - PCI Express, Intel I350 NIC - network adapter
Device Type
Network adapter
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express x4
Dimensions (WxDxH)
1.8 cm x 13.2 cm x 12 cm
Weight
95 g
Cabling Type
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol
GigE
Data Transfer Rate
1 Gbps
Performance
Forwarding performance (full duplex): 2 Gbps
Capacity
Jumbo frame size: 9000
Processor
I350-AM4 - Intel
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Colour
Black
System Requirements
Microsoft Windows Server 2008 R2, Linux 2.4.x or later, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2012, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)
Manufacturer Warranty
2 years warranty


Detail

General

Device Type
Network adapter
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express x4

Networking

Connectivity Technology
Wired
Cabling Type
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol
GigE
Data Transfer Rate
1 Gbps
Performance
Forwarding performance (full duplex): 2 Gbps
Capacity
Jumbo frame size: 9000
Status Indicators
Port status, link/activity
Features
Full duplex capability, auto-uplink (auto MDI/MDI-X), Jumbo Frames support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x

Processor / Memory

Processor
I350-AM4 - Intel

Expansion / Connectivity

Interfaces
4 x network - RJ-45

Miscellaneous

Included Accessories
Low-profile bracket
Compliant Standards
FCC, RoHS
Colour
Black

Power

Power Consumption Operational
4.4 Watt

Software / System Requirements

OS Required
Microsoft Windows Server 2008 R2, Linux 2.4.x or later, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2012, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)

Dimensions & Weight

Width
1.8 cm
Depth
13.2 cm
Height
12 cm
Weight
95 g

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature
5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
20 - 80%
