Description
The HPE 1420 Switch Series consists of unmanaged Gigabit Ethernet switches for small businesses and others looking for plug-and-play basic Layer 2 connectivity for their network, including low-cost PoE+ and 10GbE uplink models. The HPE 1420 Switch Series has four models: 16-port 10/100/1000, 24-port 10/100/1000 with two SFP Gigabit ports, 24-port 10/100/1000 ports of which 12 are PoE+ enabled (124 W PoE budget), and 24-port 10/100/1000 with two SFP+ 10GbE ports. All are fanless. They come with a limited lifetime warranty and 24X7 phone support for 90 days.
-
Cost-effective, High-performance GbE Layer 2 Switching
The HPE OfficeConnect 1420 Switch Series features gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity.Unmanaged switches offer a cost-effective small business solution for locations needing only basic Layer 2 switching in a flat single tier network.Half-/full-duplex auto-negotiating capability on every port doubles the throughput of every port. -
Flexible Choices To Meet Most Basic Layer 2 Networking Design Needs
The HPE OfficeConnect 1420 Switch Series includes nine models, all with gigabit performance and a choice of key features including PoE+, Fiber and 10G uplink options.The 1420-24G-2SFP model with SFP uplinks is ideal where gigabit fiber is required, while the 1420-24G-2SFP+ 10G Uplink model with SFP+ uplinks is available where 10GbE is needed.Power over Ethernet (PoE+) models deliver greater efficiency for powering IP phones, wireless access points, or video surveillance cameras without the cost of additional cabling.All HPE OfficeConnect 1420 Switch Series models are fanless for silent operation in office settings and include internal power supplies.Units can be deployed for desktop operation or can be rack mounted. -
Automated Features for Hands-off Operation
All HPE OfficeConnect 1420 Switch Series models are plug-and-play with zero configuration and no required ongoing administration.This unmanaged PoE+ model delivers fully automated support for powering compatible IP phones, video surveillance cameras or wireless access points.The HPE 1420-24G-2SFP+ 10G Uplink Switch requires no configuration beyond installation of optional 10GbE transceivers to achieve 10GbE speeds. Alternatively, use today with gigabit SFP transceivers if higher performance is merely a future requirement.IEEE 802.1p prioritization and other QoS features automate the preferred handling of high priority traffic, including Differentiated Services Code Point (DSCP) set priorities.The OfficeConnect 1420 Switch Series supports jumbo packets to improve the performance of large data transfers. -
Cost-effective Ownership for Now and into the Future
The HPE OfficeConnect 1420 Switch Series offers a cost-effective upgrade path to next-generation 10GbE networks to reduce performance bottlenecks.The switch series includes PoE+ options to power IP devices without the cost of additional cabling for power.Green features include energy-efficient Ethernet IEEE 802.3az, auto-power down mode on idle ports, and power savings on short distance cables for low power consumption.This series comes with a Limited Lifetime Warranty providing next business day advance hardware replacement shipment in most countries, 24x7 phone support available for the first 90 days, and electronic and business hours phone support for the entire warranty period.
Specifications
Summary
- Product Description

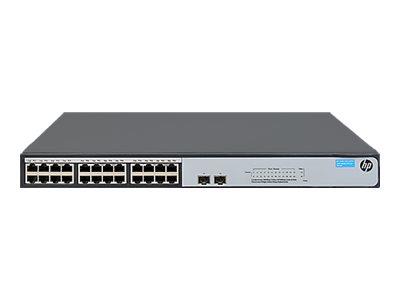

- HPE 1420-24G-2SFP+ 10G Uplink Switch - switch - 24 ports - unmanaged - rack-mountable
- Device Type
- Switch - 24 ports - unmanaged
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 2 x 1 Gigabit / 10 Gigabit SFP+
- Performance
- Throughput (64-byte packet size): up to 65.5 Mpps , Switching capacity: 88 Gbps
- MAC Address Table Size
- 16384 entries
- Jumbo Frame Support
- 9216 bytes
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, QoS, fanless, 512KB packet buffer, DSCP support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
- Dimensions (WxDxH)
- 44 cm x 23.8 cm x 4.4 cm
- Weight
- 2.9 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 24 ports - unmanaged
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 2 x 1 Gigabit / 10 Gigabit SFP+
- Performance
- Throughput (64-byte packet size): up to 65.5 Mpps , Switching capacity: 88 Gbps
- MAC Address Table Size
- 16384 entries
- Jumbo Frame Support
- 9216 bytes
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, QoS, fanless, 512KB packet buffer, DSCP support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
- Flash Memory
- 8 MB
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45 , 2 x Gigabit / 10Gbit LAN SFP+
Miscellaneous
- MTBF
- 109,4 years
- Compliant Standards
- CISPR 24, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN55024, CISPR 22, CSA 22.2 No. 60950, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A
Dimensions & Weight
- Width
- 44 cm
- Depth
- 23.8 cm
- Height
- 4.4 cm
- Weight
- 2.9 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - advance parts replacement - lifetime - response time: next business day , Technical support - phone consulting - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95% (non-condensing)
