Description

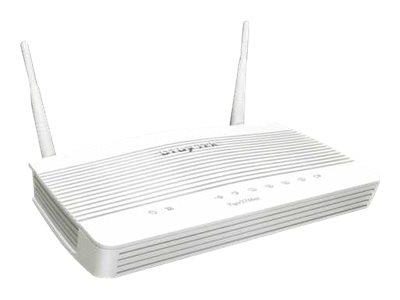

Vigor2765 Series is a 35b Supervectoring VDSL modem, a firewall, and a VPN router. The router has four GbE LAN ports, one of which is switchable to be a backup WAN interface. It's highly configurable for an abundance of features including web content filtering, bandwidth limit, QoS and lots more, perfect for professional users who would like to take full control of the network.
Specifications
Summary
- Product Description
- Draytek Vigor 2765ac - wireless router - DSL modem - Wi-Fi 5 - desktop
- Device Type
- Wireless router - DSL modem
- Enclosure Type
- Desktop
- Digital Signaling Protocol
- ADSL, VDSL, ADSL2, ADSL2+, VDSL2, Vplus 35b
- WAN Ports Qty
- 2
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Frequency Band
- 2.4 GHz / 5 GHz
- Performance
- VPN throughput (256-bit AES IPSec): 200 Mbps , VPN throughput (SSL): 80 Mbps , NAT throughput: 600 Mbps
- Capacity
- VLANs supported: 8 , Concurrent VPN tunnels: 2 , NAT sessions: 50000 , SSIDs per radio: 4
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, PPPoA, FTP, DHCP, Bonjour, SMB, DDNS, DHCPv6, RTSP, IPv4, IPv6
- Routing Protocol
- RIP, MPOA, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, TR-069
- VoIP Protocols
- H.323, SIP
- Features
- Firewall protection, VPN support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, content filtering, ALG support, port mirroring, E-mail alert, print server, IPv6 support, VPN passthrough, URL filtering, LAN-to-LAN bridging, WMM support, file sharing, ACL support, QoS, IPSec NAT-T, WPS, DHCP server, SMS alert, reset button, bandwidth control, IPv4 support, DNS server, port triggering, 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, application filtering, tagged VLAN, IGMP proxy, ToS, DSCP support, MU-MIMO technology, keyword filtering, beamforming technology, failover protection, Web Filtering, DMZ support, VLAN Tagging, port-based VLAN, DSCP based ToS, DynDNS, 2x2 MIMO technology, WPS button, Brute Force Protection
- Compliant Standards
- IEEE 802.1Q, ANSI T1.413, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, UPnP, IEEE 802.11ac Wave 2
- Dimensions (WxDxH)
- 20.7 cm x 13.1 cm x 4.2 cm
- Weight
- 500 g
- Localisation
- United Kingdom, Ireland
Detailed Specification
General
- Device Type
- Wireless router
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Frequency Band
- 2.4 GHz / 5 GHz
- Performance
- VPN throughput (256-bit AES IPSec): 200 Mbps , VPN throughput (SSL): 80 Mbps , NAT throughput: 600 Mbps
- Capacity
- VLANs supported: 8 , Concurrent VPN tunnels: 2 , NAT sessions: 50000 , SSIDs per radio: 4
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, PPPoA, FTP, DHCP, Bonjour, SMB, DDNS, DHCPv6, RTSP, IPv4, IPv6
- Routing Protocol
- RIP, MPOA, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, TR-069
- Encryption Algorithm
- DES, Triple DES, MD5, MPPE, SSL, SHA-1, WPA, WPA2, WPA-PSK, 128-bit AES, 192-bit AES, 256-bit AES, WPA2-PSK, IKEv2, 256-bit SHA, WEP
- Authentication Method
- RADIUS, X.509 certificates, internal user database, XAUTH authentication
- Features
- Firewall protection, VPN support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, content filtering, ALG support, port mirroring, E-mail alert, print server, IPv6 support, VPN passthrough, URL filtering, LAN-to-LAN bridging, WMM support, file sharing, ACL support, QoS, IPSec NAT-T, WPS, DHCP server, SMS alert, reset button, bandwidth control, IPv4 support, DNS server, port triggering, 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, application filtering, tagged VLAN, IGMP proxy, ToS, DSCP support, MU-MIMO technology, keyword filtering, beamforming technology, failover protection, Web Filtering, DMZ support, VLAN Tagging, port-based VLAN, DSCP based ToS, DynDNS, 2x2 MIMO technology, WPS button, Brute Force Protection
- Compliant Standards
- IEEE 802.1Q, ANSI T1.413, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, UPnP, IEEE 802.11ac Wave 2, FCC
- Built-in Devices
- Led panel
Line Properties
- Framing Format
- ANSI T1.413
Communications
- Type
- DSL modem
- Digital Signaling Protocol
- ADSL, VDSL, ADSL2, ADSL2+, VDSL2, Vplus 35b
- Protocols & Specifications
- ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.997.1, ITU G.992.5, ITU G.993.1, ITU G.993.2, ITU G.992.3
- Max Transfer Rate
- 300 Mbps
IP Telephony
- VoIP Protocols
- H.323, SIP
Expansion / Connectivity
- Interfaces
- LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN: 1 x VDSL2 / ADSL2+ - RJ-11 , USB 2.0: 2 x 4 pin USB Type A , Antenna: 2 x
Aerial
- Aerial
- External detachable
- Antenna Qty
- 2
Power
- Power Device
- External power adapter
- Power Consumption Operational
- 19 Watt
Miscellaneous
- Included Accessories
- 2 x WiFi aerials
- Cables Included
- 1 x modem cable , 1 x network cable
- Localisation
- United Kingdom, Ireland
Dimensions & Weight
- Width
- 20.7 cm
- Depth
- 13.1 cm
- Height
- 4.2 cm
- Weight
- 500 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
