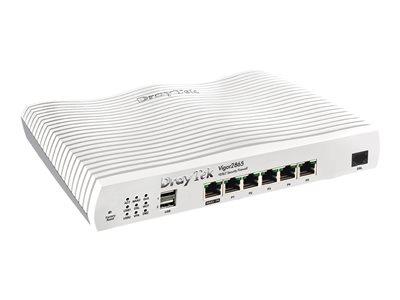

DrayTek Vigor 2865 VDSL Router

DrayTek Vigor 2865 VDSL Router

Review this product
Quicklinx: G4XQWS00 Mfr#: V2865-K
Ordered upon request
£186.02 ex VAT
£223.22 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

Marketing description is not available.

Specifications

Summary

Product Description
Draytek Vigor 2865 - router - DSL modem - desktop
Device Type
Router - DSL modem
Enclosure Type
Desktop
Digital Signaling Protocol
ADSL, VDSL, ADSL2, ADSL2+, VDSL2, Vplus 35b
WAN Ports Qty
2
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, PPP
Performance
VPN throughput (256-bit AES IPSec): 300 Mbps , VPN throughput (SSL): 120 Mbps , NAT throughput: 800 Mbps
Capacity
VLANs supported: 16 , Concurrent VPN tunnels: 32 , NAT sessions: 60000 , Concurrent SSL VPN tunnels: 16
Network / Transport Protocol
PPTP, L2TP, IPSec, PPPoE, FTP, DHCP, Bonjour, SMB, DDNS, DHCPv6, RTSP, IPv4, IPv6
Routing Protocol
RIP, BGP, GRE, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, TR-069
VoIP Protocols
H.323, SIP
Features
Firewall protection, VPN support, ARP support, load balancing, IGMP snooping, Syslog support, DoS attack prevention, content filtering, ALG support, port mirroring, E-mail alert, IPv6 support, VPN passthrough, High Availability, URL filtering, LAN-to-LAN bridging, file sharing, Access Control List (ACL) support, Quality of Service (QoS), IPSec NAT-Traversal (NAT-T), DHCP server, SMS alert, reset button, bandwidth control, IPv4 support, DNS server, port triggering, 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, application filtering, tagged VLAN, IGMP proxy, Generic Routing Encapsulation (GRE), Type of Service (ToS), DiffServ Code Point (DSCP) support, keyword filtering, failover protection, Web Filtering, DMZ support, VLAN Tagging, port-based VLAN, DSCP based ToS, DynDNS, Brute Force Protection
Compliant Standards
IEEE 802.1Q, ANSI T1.413, IEEE 802.1p, IEEE 802.1x, UPnP
Dimensions (WxDxH)
24.1 cm x 16.6 cm x 4.6 cm
Localisation
United Kingdom, Ireland


Detailed Specification

General

Device Type
Router
Enclosure Type
Desktop
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, PPP
Performance
VPN throughput (256-bit AES IPSec): 300 Mbps , VPN throughput (SSL): 120 Mbps , NAT throughput: 800 Mbps
Capacity
VLANs supported: 16 , Concurrent VPN tunnels: 32 , NAT sessions: 60000 , Concurrent SSL VPN tunnels: 16
Network / Transport Protocol
PPTP, L2TP, IPSec, PPPoE, FTP, DHCP, Bonjour, SMB, DDNS, DHCPv6, RTSP, IPv4, IPv6
Routing Protocol
RIP, BGP, GRE, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, TR-069
Encryption Algorithm
DES, Triple DES, MPPE, AES, SSL, SHA-1, IKEv2, 256-bit SHA
Authentication Method
RADIUS, X.509 certificates, TACACS+, LDAP, internal user database, XAUTH authentication
Features
Firewall protection, VPN support, ARP support, load balancing, IGMP snooping, Syslog support, DoS attack prevention, content filtering, ALG support, port mirroring, E-mail alert, IPv6 support, VPN passthrough, High Availability, URL filtering, LAN-to-LAN bridging, file sharing, Access Control List (ACL) support, Quality of Service (QoS), IPSec NAT-Traversal (NAT-T), DHCP server, SMS alert, reset button, bandwidth control, IPv4 support, DNS server, port triggering, 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, application filtering, tagged VLAN, IGMP proxy, Generic Routing Encapsulation (GRE), Type of Service (ToS), DiffServ Code Point (DSCP) support, keyword filtering, failover protection, Web Filtering, DMZ support, VLAN Tagging, port-based VLAN, DSCP based ToS, DynDNS, Brute Force Protection
Compliant Standards
IEEE 802.1Q, ANSI T1.413, IEEE 802.1p, IEEE 802.1x, UPnP
Built-in Devices
Led panel
Status Indicators
WAN, DMZ, link/activity, USB, VPN, DSL

Line Properties

Framing Format
ANSI T1.413

Communications

Type
DSL modem
Digital Signaling Protocol
ADSL, VDSL, ADSL2, ADSL2+, VDSL2, Vplus 35b
Protocols & Specifications
ITU G.992.1 (G.DMT) Annex A, ITU G.992.3 Annex A, ITU G.993.2, ITU G.992.5 Annex A, ITU G.993.5
Max Transfer Rate
300 Mbps

IP Telephony

VoIP Protocols
H.323, SIP

Expansion / Connectivity

Interfaces
LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN: 1 x VDSL2 / ADSL2+ - RJ-11 , USB 2.0: 2 x 4 pin USB Type A

Power

Power Device
External power adapter

Miscellaneous

Cables Included
1 x modem cable
Localisation
United Kingdom, Ireland

Dimensions & Weight

Width
24.1 cm
Depth
16.6 cm
Height
4.6 cm

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90% (non-condensing)
