Specifications
Summary
- Product Description
- Draytek Vigor 2927LAC - wireless router - WWAN - 802.11a/b/g/n/ac Wave 2 - desktop
- Device Type
- Wireless router - wireless cellular modem - 6-port switch (integrated)
- Enclosure Type
- Desktop
- Mobile Communication Protocol
- HSPA+, LTE
- WAN Ports Qty
- 2
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Frequency Band
- 2.4 GHz / 5 GHz
- Performance
- VPN throughput (256-bit AES IPSec): 300 Mbps , VPN throughput (SSL): 120 Mbps , NAT throughput for dual WAN with hardware acceleration: 1.8 Gbps , NAT throughput for single WAN with hardware acceleration: 950 Mbps , NAT throughput: 800 Mbps
- Capacity
- Concurrent VPN tunnels: 50 , Concurrent SSL VPN tunnels: 25 , NAT sessions: 60000 , Hardware accelerated NAT sessions: 8000
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, DHCP, DNS, DDNS, DHCPv6, IPv4, IPv6
- Routing Protocol
- RIP, BGP, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR)
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, TR-069, TR-104
- Features
- NAT support, VPN support, load balancing, IGMP snooping, Syslog support, DoS attack prevention, content filtering, E-mail alert, print server, MAC address filtering, VPN passthrough, Wireless Distribution System (WDS) support, firmware upgradable, DDos attack prevention, wall mountable, tunnelling, Wi-Fi Multimedia (WMM) support, file sharing, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), roaming function, WAN failover, DHCP server, Multiple SSID support, hidden SSID, reset button, Wireless Client Mode, Stateful Packet Inspection Firewall (SPIF), 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, DHCP client, tagged VLAN, IGMP proxy, Management Information Base (MIB) II, DMZ support, VLAN Tagging, port-based VLAN, Wireless Mesh support, WLAN/WPS button, 2x2 MIMO technology, 4x4 MIMO technology, DSCP based QoS
- Compliant Standards
- IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac Wave 2
- Power
- AC 230V
- Dimensions (WxDxH)
- 24.1 cm x 16.5 cm x 4.4 cm
- Localisation
- United Kingdom
Detailed Specification
General
- Device Type
- Wireless router - 6-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Frequency Band
- 2.4 GHz / 5 GHz
- Performance
- VPN throughput (256-bit AES IPSec): 300 Mbps , VPN throughput (SSL): 120 Mbps , NAT throughput for dual WAN with hardware acceleration: 1.8 Gbps , NAT throughput for single WAN with hardware acceleration: 950 Mbps , NAT throughput: 800 Mbps
- Capacity
- Concurrent VPN tunnels: 50 , Concurrent SSL VPN tunnels: 25 , NAT sessions: 60000 , Hardware accelerated NAT sessions: 8000
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, DHCP, DNS, DDNS, DHCPv6, IPv4, IPv6
- Routing Protocol
- RIP, BGP, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR)
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, TR-069, TR-104
- Encryption Algorithm
- DES, Triple DES, MPPE, 128-bit WEP, 64-bit WEP, SSL, SHA-1, WPA, WPA2, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, IKEv1, SHA-256
- Authentication Method
- RADIUS, X.509 certificates, Radio Service Set ID (SSID), TACACS+, LDAP
- Wi-Fi Rating
- AC1300
- Features
- NAT support, VPN support, load balancing, IGMP snooping, Syslog support, DoS attack prevention, content filtering, E-mail alert, print server, MAC address filtering, VPN passthrough, Wireless Distribution System (WDS) support, firmware upgradable, DDos attack prevention, wall mountable, tunnelling, Wi-Fi Multimedia (WMM) support, file sharing, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), roaming function, WAN failover, DHCP server, Multiple SSID support, hidden SSID, reset button, Wireless Client Mode, Stateful Packet Inspection Firewall (SPIF), 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, DHCP client, tagged VLAN, IGMP proxy, Management Information Base (MIB) II, DMZ support, VLAN Tagging, port-based VLAN, Wireless Mesh support, WLAN/WPS button, 2x2 MIMO technology, 4x4 MIMO technology, DSCP based QoS
- Compliant Standards
- IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac Wave 2
- Built-in Devices
- Led panel
- Status Indicators
- Active, WAN, DMZ, USB, LTE, 5 GHz, 2.4 GHz, QoS
Communications
- Type
- Wireless cellular modem
- Mobile Communication Protocol
- HSPA+, LTE
- Max Transfer Rate
- 300 Mbps
Expansion / Connectivity
- Interfaces
- LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , USB: 1 x 4 pin USB Type A , Antenna: 4 x
- Expansion Slots
- 1 (total) / 1 (free) x SIM
Power
- Power Device
- External power adapter
- Voltage Required
- AC 230V
Miscellaneous
- Included Accessories

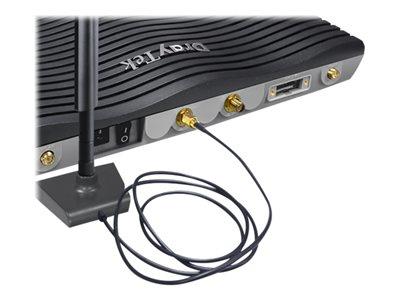

- 2 aerial magnetic extension bases, 2 x WiFi aerials, 2 x LTE aerials
- Cables Included
- 2 x aerial extension cable - 1 m
- Localisation
- United Kingdom
Dimensions & Weight
- Width
- 24.1 cm
- Depth
- 16.5 cm
- Height
- 4.4 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
