Description
The Vigor 2832 features a hugely flexible VLAN system. In its simplest form, each of the four Gigabit LAN ports can be isolated from each other, for example to feed different companies or departments but keeping their local traffic completely separated. For more sophisticated scenarios, the Vigor 2832 includes tagged VLANs (802.1q) whereby data is marked with a VLAN identifier. This identifier can be read by an onward Ethernet switch and directed to specific ports or just passed to the LAN for specific VLAN clients to pick up; priorities can also be applied for LAN-side QoS.
Specifications
Summary
- Product Description

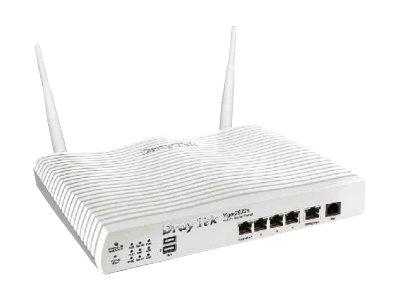

- Draytek Vigor 2832n - wireless router - DSL modem - 802.11b/g/n - desktop
- Device Type
- Wireless router - DSL modem - 4-port switch (integrated)
- Enclosure Type
- Desktop
- Digital Signaling Protocol
- ADSL2, ADSL2+, READSL
- WAN Ports Qty
- 2
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Capacity
- NAT sessions: 50000 , Concurrent VPN tunnels: 32 , SSL VPN tunnels: 10
- Network / Transport Protocol
- PPTP, L2TP, IPSec
- Routing Protocol
- RIP
- Remote Management Protocol
- SNMP 3, HTTP, HTTPS, TFTP, CLI, TR-069
- Features
- Firewall protection, content filtering, dynamic DNS server, IPv6 support, VPN passthrough, URL filtering, wall mountable, LAN-to-LAN bridging, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), RADIUS support, WAN failover, DHCP server, 2T2R MIMO technology, IPv4 support, DHCP relay, DHCP client, static routing, WAN load balancing, keyword filtering
- Compliant Standards
- IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11e, IEEE 802.11n
- Power
- AC 230V
- Dimensions (WxDxH)
- 16.507 cm x 24.096 cm x 4.396 cm
- Localisation
- United Kingdom
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Wireless router - 4-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Capacity
- NAT sessions: 50000 , Concurrent VPN tunnels: 32 , SSL VPN tunnels: 10
- Network / Transport Protocol
- PPTP, L2TP, IPSec
- Routing Protocol
- RIP
- Remote Management Protocol
- SNMP 3, HTTP, HTTPS, TFTP, CLI, TR-069
- Encryption Algorithm
- MD5, WPA, WPA2, WEP
- Features
- Firewall protection, content filtering, dynamic DNS server, IPv6 support, VPN passthrough, URL filtering, wall mountable, LAN-to-LAN bridging, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), RADIUS support, WAN failover, DHCP server, 2T2R MIMO technology, IPv4 support, DHCP relay, DHCP client, static routing, WAN load balancing, keyword filtering
- Compliant Standards
- IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11e, IEEE 802.11n
Communications
- Type
- DSL modem
- Digital Signaling Protocol
- ADSL2, ADSL2+, READSL
Expansion / Connectivity
- Interfaces
- USB 2.0: 2 x 4 pin USB Type A , WAN: 1 x ADSL2+ - RJ-11 , WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Aerial
- Aerial
- External detachable
- Antenna Qty
- 2
Power
- Power Device
- External power adapter
- Voltage Required
- AC 230V
- Power Consumption Operational
- 18 Watt
Miscellaneous
- Localisation
- United Kingdom
Dimensions & Weight
- Width
- 16.507 cm
- Depth
- 24.096 cm
- Height
- 4.396 cm
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
