Description
The Motorola CS3000 Series enables enterprises to easily implement 1D laser scanning where either mobility or the cost and size of a traditional scanning device is an inhibitor. The tiny device fits in a pocket or on a lanyard. The CS3070 offers batch mode as well as real-time bar code data transmission to a host application via a wireless Bluetooth connection to smartphones, laptops and more. The result is a high level of affordability for 1D scanning - and the ability to streamline, error-proof and simplify more business processes.
-
Zebra signature ergonomics ensure user comfort and ease of use
The easy to use CS3000 Series requires virtually no training to operate. The highly intuitive simple 2-button interface makes scanning easy and grooves guide hands and fingers into the most comfortable scanning position. -
Enterprise-class capacity, reliability and low total cost of ownership
The large memory capacity allows workers to capture more than a million barcodes, providing ample support for the largest batch operations. The non-volatile memory ensures that batch data is retained.
Specifications
Summary
- Product Description

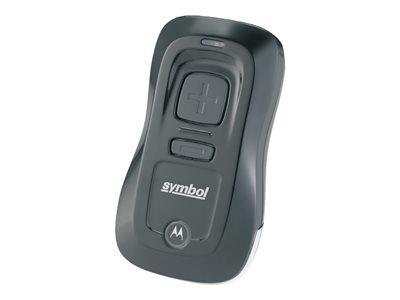

- Zebra CS3000 Series CS3070 - barcode scanner
- Type
- Barcode scanner - portable - Bluetooth 2.1 EDR - decoded
- Scan Element Type
- Laser
- Connectivity Technology
- Wireless
- Wireless Connectivity
- Bluetooth 2.1 EDR
- Battery
- 1 x Lithium Ion
- Dimensions (WxDxH)
- 5 cm x 8.7 cm x 2.2 cm
- Weight
- 70 g
- Manufacturer Warranty
- 1-year warranty
Detailed Specification
General
- Type
- Barcode scanner - portable
Barcode
- Interface Type
- Bluetooth 2.1 EDR
- Scan Element Type
- Laser
- Scan Mode
- Single-pass
- TTL Decoding
- Decoded
- Connectivity Technology
- Wireless
- OK Notification
- LED indicator
Networking
- Wireless Connectivity
- Bluetooth 2.1 EDR
Memory
- Flash
- 512 MB
Expansion / Connectivity
- Interfaces
- 1 x USB 2.0
Miscellaneous
- Cables Included
- 1 x USB cable
- Compliant Standards
- RoHS, IEC 60529 IP40
Power
- Power Device
- Power adapter - external
- Battery
- 1 x Lithium Ion
Dimensions & Weight
- Width
- 5 cm
- Depth
- 8.7 cm
- Height
- 2.2 cm
- Weight
- 70 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 95%
- Drop Specification
- 1.2 m to concrete
