Description

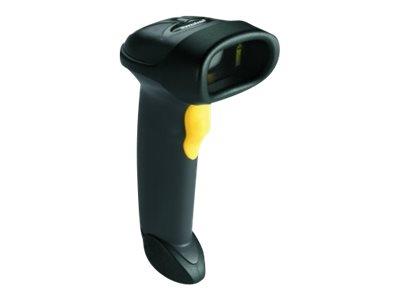

Symbol LS2208 Handheld USB Laser Barcode Scanner
- General Features:
- 7-footUSB cable
- USE interface
- Durable scan element design
- Fast performance at 100 scans per second
- Global Trade Item Number (GTlN) Compliant
- Advanced Data Formatting (ADF) enables users to modify data prior to sending to host computer
- Universal cables for sharing
- Bright LED and beeper with adjustable volume
- Ergonomic design
- Bi-directional scanner
- 650 nm visible laser diode light source
-
Durable single-board construction
Meets stringent 5-ft drop tests. -
Scratch-resistant tempered glass exit window
Is designed for continuous use. -
Accurate first-time capture of 1D bar codes
Increased productivity, resulting in shorter check-out lines and better customer service. -
Wide working range
Delivers optimal performance from contact to 17 in (43 cm). -
Multiple onboard interfaces
Simplify installation and integration and ensures future compatibility. -
Plug-and-Play, with universal cable
Means rapid deployment, with a single cable connecting to any computing environment. -
Intuitive design
Minimizes setup and training time. -
Ergonomic, lightweight design
Reduces user fatigue with sleek, balanced form for maximum comfort and productivity. -
Advanced Data Formatting (ADF)
Enables users to modify data prior to sending to host computer, reducing costly modifications to the host software.
Specifications
Summary
- Product Description
- Symbol LS2208 - barcode scanner
- Type
- Barcode scanner - handheld - USB - decoded
- Colour
- Twilight black
- Scan Element Type
- Visible laser diode
- Scan Speed
- 100 scan / sec
- Connectivity Technology
- Wired
- Dimensions (WxDxH)
- 6.3 cm x 8.4 cm x 15.2 cm
- Weight
- 146 g
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Type
- Barcode scanner - handheld
- Colour
- Twilight black
Barcode
- Interface Type
- USB
- Scan Element Type
- Visible laser diode
- Light Source Wave Length
- 650 nm
- Scan Mode
- Single-pass
- Scan Speed
- 100 scan / sec
- Max Working Distance
- 43 cm
- Skew (Degrees)
- 60
- Pitch (Degrees)
- 65
- Print Contrast Signal (PCS)
- 20%
- Decode Capability
- EAN/JAN, Code 93, Code 39, UCC/EAN-128, IATA, GS1 DataBar, Code 39 Full ASCII, Discrete 2 of 5, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, MSI-Plessey, Code 128 Full ASCII
- TTL Decoding
- Decoded
- Connectivity Technology
- Wired
- OK Notification
- Beeper, LED indicator
- Features
- Advanced Data Formatting (ADF)
Expansion / Connectivity
- Interfaces
- 1 x USB - Type A
Miscellaneous
- Included Accessories
- Stand
- Cables Included
- 1 x USB cable - external
- Compliant Standards
- VCCI, EN 60950, IEC 950, UL 1950, CSA 22.2 No. 950, ICES-003 Class B, FCC Part 15 B, MITI, EMC, RoHS
Dimensions & Weight
- Width
- 6.3 cm
- Depth
- 8.4 cm
- Height
- 15.2 cm
- Weight
- 146 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 5 - 95%
- Drop Specification
- 1.5 m to concrete
