Description
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-HP corded and DS3678-HP cordless scanners are ready for the world's toughest environments - the warehouse and manufacturing floor.
In addition to capturing virtually any 1D or 2D barcode as far as 7 ft./2.1 m away, these scanners give you the flexibility to capture a wide range of business information to streamline many everyday business processes, including OCR, documents and photos.
No matter what types of data your workers need to capture, you get all the features you need for truly unstoppable performance, redefining scanner reliability and management simplicity. The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.
-
Superior performance
Your workers can capture information as fast as they can pull the trigger - from virtually any electronic or printed barcode in any condition to photos that can provide undisputable proof of condition for incoming shipments, plus images of highly legible documents for electronic recordkeeping. Even if barcodes are damaged, dirty or poorly printed, no problem - this intelligent scanner can handle it all. -
Ultra-rugged design
The warehouse and manufacturing plant floor is as tough as its gets. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution. -
Unrivaled manageability
With the complimentary industry-best tools, managing these scanners couldn't be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
Specifications
Summary
- Product Description

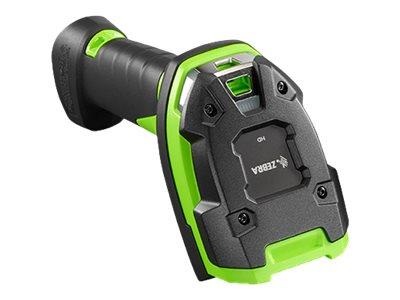

- Zebra DS3608-HP - barcode scanner
- Type
- Barcode scanner - handheld - USB - decoded
- Colour
- Industrial green
- Minimum Bar Width
- 3 mil
- Sensor Resolution
- 1280 x 960
- Connectivity Technology
- Wired
- Dimensions (WxDxH)
- 7.6 cm x 13.2 cm x 18.5 cm
- Weight
- 309 g
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Type
- Barcode scanner - handheld
- Colour
- Industrial green
Barcode
- Interface Type
- USB
- Minimum Bar Width
- 3 mil
- Sensor Resolution
- 1280 x 960
- Max Working Distance
- 35 cm
- Skew (Degrees)
- 60
- Pitch (Degrees)
- 60
- Print Contrast Signal (PCS)
- 15%
- Decode Capability
- Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Code 3 of 5, Italy Pharmacode, Codabar, Code 128, Code 11, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code, UPC/EAN supplementals
- TTL Decoding
- Decoded
- Connectivity Technology
- Wired
- OK Notification
- Beeper, LED indicator, vibration
- Features
- Waterproof, dustproof, rugged
Expansion / Connectivity
- Interfaces
- 1 x USB
Miscellaneous
- Cables Included
- 1 x USB cable - external
- Compliant Standards
- UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B
Power
- Electric Current Required
- 450 mA (operating), 100 mA (standby)
Dimensions & Weight
- Width
- 7.6 cm
- Depth
- 13.2 cm
- Height
- 18.5 cm
- Weight
- 309 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- -30 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Drop Specification
- 2.4 m to concrete
