Description

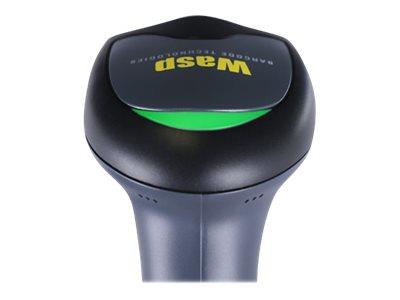

The Wasp WDI4200 2D barcode scanner is compact, lightweight, ergonomic and efficient. It is able to read long and truncated 1D barcodes and larger 2D barcodes from close distances and from different angles, whether printed or displayed on a smartphone or tablet. It also features green spot technology for visual good-read feedback and a beeper for audio good-read feedback, which can be silenced when needed.
The Wasp WDI4200 is built to last: It includes rubber over the seams to protect it when dropped. It is IP42 rated against water and dust and is drop resistant up to 5 ft. These characteristics make the Wasp WDI4200 2D barcode scanner the perfect data collector device for a broad range of industries and applications such as: retail, light manufacturing, document and billing processing, banking and financial environments and more.
Specifications
Summary
- Product Description
- Wasp WDI4200 - barcode scanner
- Type
- Barcode scanner - handheld - USB - decoded
- Colour
- Black
- Minimum Bar Width
- 4 mil
- Scan Element Type
- 2D imager
- Sensor Resolution
- 640 x 480
- Connectivity Technology
- Wired
- Dimensions (WxDxH)
- 7.1 cm x 6.6 cm x 17.1 cm
- Weight
- 120 g
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Type
- Barcode scanner - handheld
- Colour
- Black
Barcode
- Interface Type
- USB
- Minimum Bar Width
- 4 mil
- Scan Element Type
- 2D imager
- Sensor Resolution
- 640 x 480
- Skew (Degrees)
- 65
- Pitch (Degrees)
- 65
- Print Contrast Signal (PCS)
- 20%
- Decode Capability
- Code 93, UPC, PDF417, Data Matrix, QR code, GS1 DataBar, Aztec code, China Han Xin Code, MaxiCode, Micro QR code, Australian Post, China Post, Intelligent Mail Barcode, Japanese Post, Kix (Netherlands) Post, PLANET, Portuguese Post, Postnet, Royal Mail, RM4SCC, Swedish Post, EAN/JAN, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF417, MicroPDF417, UPC A Composite, UPC E Composite
- TTL Decoding
- Decoded
- Connectivity Technology
- Wired
- OK Notification
- LED indicator, beeper
- Features
- Green Spot technology
Expansion / Connectivity
- Interfaces
- 1 x USB - Type A
Miscellaneous
- Cables Included
- 1 x USB cable - 1.83 m
- Compliant Standards
- IP42, WEEE, RoHS, FCC CFR47 Part 15 B Class B, EN 485, IEC 62471
Power
- Electric Current Required
- 170 mA (operating), 90 mA (standby)
Dimensions & Weight
- Width
- 7.1 cm
- Depth
- 6.6 cm
- Height
- 17.1 cm
- Weight
- 120 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Drop Specification
- 1.5 m to concrete
