Description

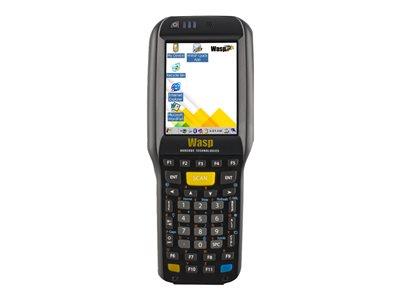

The DT92 features better ergonomics paired with a comfortable and durable pistol grip handle. With its 38-key functional keypad, and a high-visibility color graphic display with touchscreen, the DT92 is the premier solution for applications in retail, warehouse, and logistics environments.
Specifications
Summary
- Product Description
- Wasp DT92 - data collection terminal - Win Embedded Compact 7 - 8 GB - 3.2"
- Product Type
- Data collection terminal - rugged
- Operating System
- Microsoft Windows Embedded Compact 7
- Display
- 3.2" colour TFT - LED backlight - 240 x 320
- Processor
- Texas Instruments OMAP 4
- Processor Clock Speed
- 1 GHz
- Storage
- 8 GB
- RAM
- 1 GB
- Supported Flash Memory Cards
- microSD, microSDHC
- Wireless Connectivity
- 802.11a/b/g/n, Bluetooth 4.0
- Barcode Reader
- Yes (2D imager)
- Barcodes
- GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, PLANET, Australian Post, Japanese Post, Kix (Netherlands) Post, Royal Mail, Micro QR code, GS1 DataBar Composites, Intelligent Mail Barcode, US Postnet, UPC/EAN/JAN Composites, GS1-128 Composites
- Battery Run Time
- Up to 10 hours
- Dimensions (WxDxH)
- 7.6 cm x 4.2 cm x 19.3 cm
- Weight
- 388 g
- Manufacturer Warranty
- 1-year warranty
Detailed Specification
General
- Product Type
- Data collection terminal - rugged
- Operating System
- Microsoft Windows Embedded Compact 7
Display
- Type
- 3.2" colour TFT (transflective) - LED backlight
- Resolution
- 240 x 320
- Features
- Touch screen
Processor
- Processor
- Texas Instruments OMAP 4
- Processor Clock Speed
- 1 GHz
Memory
- Storage
- 8 GB
- RAM
- 1 GB
- Supported Flash Memory Cards
- microSD, microSDHC
- Max Supported Capacity
- 32 GB
Communications
- Wireless Connectivity
- 802.11a/b/g/n, Bluetooth 4.0
Input Device
- Type
- Touch-screen, stylus, functional backlit keyboard
- Keys Qty
- 38
Barcodes
- Barcode Reader
- Yes
- Scan Element Type
- 2D imager
- Barcodes
- GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, PLANET, Australian Post, Japanese Post, Kix (Netherlands) Post, Royal Mail, Micro QR code, GS1 DataBar Composites, Intelligent Mail Barcode, US Postnet, UPC/EAN/JAN Composites, GS1-128 Composites
- Max Working Distance
- 74 cm
- Minimum Bar Width
- 3 mil
System Requirements for PC Connection
- OS Required
- Microsoft Windows 2000, Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows XP (32/64 bits) SP3, Microsoft Windows Server 2012, Microsoft Windows Vista / 7 / 8 / 10 (32/64 bits)
Expansion and Connectivity
- Expansion Slots
- 1 x microSD
Battery
- Technology
- Lithium Ion
- Capacity
- 3000 mAh
- Run Time
- Up to 10 hours
Miscellaneous
- Features
- Green Spot technology, MIMO technology
- Included Accessories
- Power adapter, hand strap
- Cables Included
- USB cable
- Compliant Standards
- IP64
Dimensions & Weight
- Width
- 7.6 cm
- Depth
- 4.2 cm
- Height
- 19.3 cm
- Weight
- 388 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Environmental Parameters
- Min Operating Temperature
- -10 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
