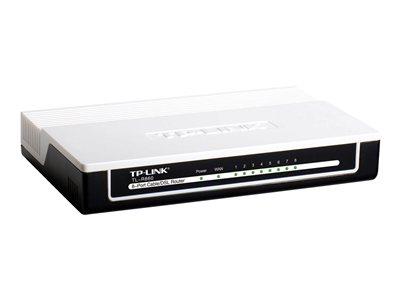

TP LINK 8-Port 1 x WAN + 8 x LAN Cable/DSL Router

TP LINK 8-Port 1 x WAN + 8 x LAN Cable/DSL Router

Review this product
Quicklinx: 897VWS00 Mfr#: TL-R860
Discontinued

Description

The TL-R860 multifunctional broadband router is especially designed for SOHO (Small Office/Home Office) to access the Internet. It features strong functions, high performance, and easy configuration router. The TL-R860 provides many management functions.

The TL-R860 router provides flexible access control, limiting staff or children to browse selected sites. The TL-R860 router is also a smart helper. It connects to the Internet automatically on demand and disconnects when idle to save on network costs. It's easy to configure.

Specifications

Summary

Product Description
TP-LINK TL-R860 - router - desktop
Device Type
Router - 8-port switch (integrated)
Enclosure Type
Desktop
Data Link Protocol
Ethernet, Fast Ethernet
Data Transfer Rate
100 Mbps
Network / Transport Protocol
TCP/IP, L2TP, ICMP/IP, PPPoE, DHCP
Routing Protocol
Static IP routing
Remote Management Protocol
HTTP
Features
Firewall protection, NAT support, auto-negotiation, auto-uplink (auto MDI/MDI-X), dynamic DNS server, MAC address filtering, VPN passthrough, IP address filtering, firmware upgradable, SNTP support, virtual server support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1x, UPnP
Dimensions (WxDxH)
18.6 cm x 14.6 cm x 4.4 cm


Detail

General

Device Type
Router - 8-port switch (integrated)
Enclosure Type
Desktop
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet
Data Transfer Rate
100 Mbps
Network / Transport Protocol
TCP/IP, L2TP, ICMP/IP, PPPoE, DHCP
Routing Protocol
Static IP routing
Remote Management Protocol
HTTP
Features
Firewall protection, NAT support, auto-negotiation, auto-uplink (auto MDI/MDI-X), dynamic DNS server, MAC address filtering, VPN passthrough, IP address filtering, firmware upgradable, SNTP support, virtual server support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1x, UPnP , FCC
Status Indicators
Link activity, 100M device connected

Expansion / Connectivity

Interfaces
LAN: 8 x 10Base-T/100Base-TX - RJ-45 , WAN: 1 x 10Base-T/100Base-TX - RJ-45

Power

Power Device
External power adapter

Dimensions & Weight

Width
18.6 cm
Depth
14.6 cm
Height
4.4 cm

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90%
