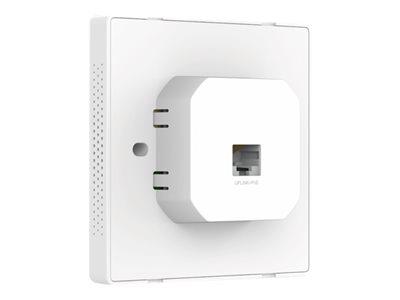

TP LINK Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

Review this product
Quicklinx: G6WQWS00 Mfr#: EAP230-Wall
Hurry, only 1 left in stock!
£57.54 ex VAT
£69.04 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.

  • MU-MIMO + dual-band: faster connection for more devices

    802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.
  • Seamlessly blends with any d├ęcor

    The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.
  • High-speed Gigabit port

    Equipped with a Gigabit port to deliver the fastest possible wired transmission.
  • Effortless deployment with Power over Ethernet

    802.3af/802.3at PoE support means there's no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.

Specifications

Summary

Product Description
TP-Link Omada EAP230 - V1 - wireless router - 802.11a/b/g/n/ac Wave 2 - wall-mountable
Device Type
Wireless router
Enclosure Type
Wall-mountable
WAN Ports Qty
1
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band
2.4 GHz / 5 GHz
Network / Transport Protocol
HTTP, HTTPs
Remote Management Protocol
SNMP 1, SNMP 2c, HTTP, HTTPS, SSH
Features
Syslog support, E-mail alert, MAC address filtering, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), reset button, rogue access point detection, 802.1x authentication, cloud managed, MU-MIMO technology, beamforming technology, band steering, rate limit, Wireless Scheduler, LED on/off button, guest access, Zero-touch provisioning (ZTP), schedule reboot
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2
Dimensions (WxDxH)
8.68 cm x 3.02 cm x 8.68 cm
System Requirements
Microsoft Windows XP / Vista / 7 / 8 / 10


Detailed Specification

General

Device Type
Wireless router
Enclosure Type
Wall-mountable
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band
2.4 GHz / 5 GHz
Network / Transport Protocol
HTTP, HTTPs
Remote Management Protocol
SNMP 1, SNMP 2c, HTTP, HTTPS, SSH
Encryption Algorithm
128-bit WEP, 64-bit WEP, 152-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK, WPA2-Enterprise
Authentication Method
Secure Shell (SSH), Radio Service Set ID (SSID)
Features
Syslog support, E-mail alert, MAC address filtering, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), reset button, rogue access point detection, 802.1x authentication, cloud managed, MU-MIMO technology, beamforming technology, band steering, rate limit, Wireless Scheduler, LED on/off button, guest access, Zero-touch provisioning (ZTP), schedule reboot
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, RoHS

Expansion / Connectivity

Interfaces
LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45

Power

Power Consumption Operational
7 Watt

Miscellaneous

Mounting Kit
Included

Software / System Requirements

OS Required
Microsoft Windows XP / Vista / 7 / 8 / 10

Dimensions & Weight

Width
8.68 cm
Depth
3.02 cm
Height
8.68 cm

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
