Description
The Synology SNV3400 NVMe SSD is designed to handle tough caching workloads in a 24/7 multi-user environment. Its durable I/O performance boosts system responsiveness and speeds up handling of frequent access data, providing a streamlined storage experience while minimizing service disruptions to your Synology NAS.
Designed for use in Synology systems only, warranty claims will be rejected when used in non-Synology devices
-
Consistently fast caching for 24/7 environments
Built for system cache, the Synology SNV3400 pushes up random I/O performance and reduces latency in demanding 24/7 environments. It offers durable caching and it is suitable for multimedia post-production and database applications. -
Data integrity safeguards
The Synology SNV3400 integrates end-to-end data protection to safeguard data integrity over the entire transfer path. -
Timely notifications
Plan further ahead for uninterrupted system performance and longevity with timely notifications.
Specifications
Summary
- Product Description

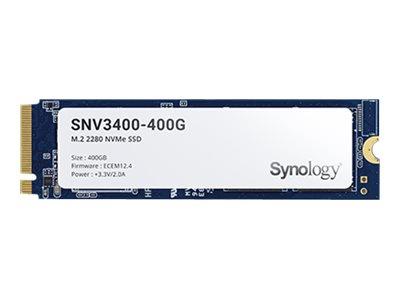

- Synology SNV3400-400G - SSD - 400 GB - PCIe 3.0 x4 (NVMe)
- Type
- Solid state drive - internal
- Capacity
- 400 GB
- Form Factor
- M.2 2280
- Interface
- PCIe 3.0 x4 (NVMe)
- Features
- End-to-end data protection, NVM Express (NVMe)
- Dimensions (WxDxH)
- 22 mm x 80 mm x 3.5 mm
- Manufacturer Warranty
- 5-year warranty
- Designed For
- Disk Station DS1618+, DS1819+, DS2419+; RackStation RS2818RP+, RS820+, RS820RP+
Detailed Specification
General
- Device Type
- Solid state drive - internal
- Capacity
- 400 GB
- Form Factor
- M.2 2280
- Interface
- PCIe 3.0 x4 (NVMe)
- Features
- End-to-end data protection, NVM Express (NVMe)
- Width
- 22 mm
- Depth
- 80 mm
- Height
- 3.5 mm
Performance
- Drive Writes Per Day (DWPD)
- 0.68
- SSD Endurance
- 500 TB
- Internal Data Rate
- 3100 MBps (read) / 550 MBps (write)
- Maximum 4KB Random Write
- 40000 IOPS
- Maximum 4KB Random Read
- 205000 IOPS
Reliability
- MTBF
- 1,800,000 hours
- 24x7 Operation
- Yes
- Non-Recoverable Errors
- 1 per 10^17
Expansion & Connectivity
- Compatible Bay
- M.2 2280
Power
- Power Consumption
- 3.2 Watt (read) , 3.2 Watt (write) , 2 Watt (idle)
Miscellaneous
- Compliant Standards
- VCCI, BSMI, FCC, RoHS, KC, RCM
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 85 °C
Compatibility Information
- Designed For
- Synology Disk Station DS1618+, DS1819+, DS2419+ , Synology RackStation RS2818RP+, RS820+, RS820RP+
