Product Description

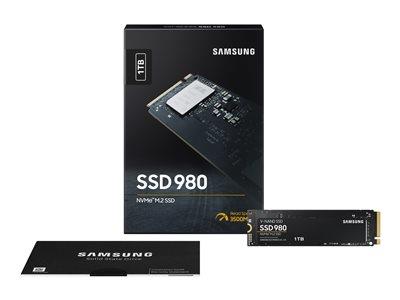

Samsung 980 MZ-V8V1T0BW - SSD - 1 TB - PCIe 3.0 x4 (NVMe)

Type

Solid state drive - internal

Capacity

1 TB

Hardware Encryption

Yes

Encryption Algorithm

256-bit AES

Form Factor

M.2 2280

Interface

PCIe 3.0 x4 (NVMe)

Features

TRIM support, Auto Garbage Collection Algorithm, Device Sleep support, Host Memory Buffer (HMB), NVM Express (NVMe) 1.4, Samsung V-NAND 3bit MLC Technology, Samsung Pablo Controller, Intelligent TurboWrite Technology, state-of-the-art thermal control, S.M.A.R.T.

Dimensions (WxDxH)

22.15 mm x 80.15 mm x 2.38 mm

Weight

8 g

Manufacturer Warranty

5-year warranty

General

Device Type

Solid state drive - internal

Capacity

1 TB

Hardware Encryption

Yes

Encryption Algorithm

256-bit AES

Form Factor

M.2 2280

Interface

PCIe 3.0 x4 (NVMe)

Features

TRIM support, Auto Garbage Collection Algorithm, Device Sleep support, Host Memory Buffer (HMB), NVM Express (NVMe) 1.4, Samsung V-NAND 3bit MLC Technology, Samsung Pablo Controller, Intelligent TurboWrite Technology, state-of-the-art thermal control, S.M.A.R.T.

Width

22.15 mm

Depth

80.15 mm

Height

2.38 mm

Weight

8 g

Performance

SSD Endurance

600 TB

Internal Data Rate

3500 MBps (read) / 3000 MBps (write)

4KB Random Read

17000 IOPS

4KB Random Write

54000 IOPS

Maximum 4KB Random Write

480000 IOPS

Maximum 4KB Random Read

500000 IOPS

Reliability

MTBF

1,500,000 hours

Expansion & Connectivity

Interfaces

PCI Express 3.0 x4 (NVMe) - M.2 Card

Compatible Bay

M.2 2280

Power

Power Consumption

4.6 Watt (average) , 5.3 Watt (maximum) , 0.045 Watt (idle)

Software & System Requirements

Software Included

Samsung Magician Software

Miscellaneous

Compliant Standards

IEEE 1667

Manufacturer Warranty

Service & Support

Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C

Shock Tolerance (operating)

1500 g @ 0.5 ms half-sine
