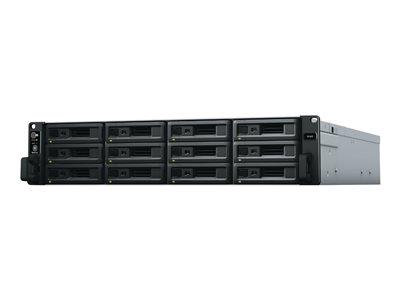

Synology SA3400 12 Bay Rack-Mountable

Review this product
Quicklinx: FB2DWS00 Mfr#: SA3400
Stock Status: In Stock
  • Xeon
Hurry, only 1 left in stock!
£4,796.90 ex VAT
£5,756.28 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

Marketing description is not available.

  • Small-to-hyperscale flexibility

    Scalable up to 180/96 drives delivering more than 1.5 petabytes raw capacity, SA3400 can easily fulfill extensive storage needs, including video post-production and massive surveillance deployment.
  • Supercharge network performance effortlessly

    Built-in dual 10GbE Ethernet ports and dual PCIe 3.0 slots provide high-speed network transmission with additional network interface cards' expansion.
  • Btrfs: next-generation storage efficiency

    Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern large scale businesses.
  • Fully certified storage virtualization solutions

    Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface.

Specifications

Summary

Product Description
Synology SA3400 - NAS server - 0 GB
Device Type
NAS server
Host Connectivity
Gigabit Ethernet / 10 Gigabit Ethernet
Enclosure Type
Rack-mountable - 2U
Total Storage Capacity
0 GB
Installed Devices / Modules Qty
0 (installed) / 12 (max)
Dimensions (WxDxH)
48.2 cm x 72.4 cm x 8.8 cm
Weight
14.5 kg
Processor
1 x Intel Xeon D-1541 2.1 GHz (8-core)
Storage Controller
RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1
Networking
10Mb LAN, 100Mb LAN, GigE, 10 GigE
IP Cameras Supported
100
RAM
16 GB
Power
AC 120/230 V (50/60 Hz)
System Requirements
Microsoft Windows 7 or later, Apple MacOS X 10.11 or later
Manufacturer Warranty
5-year warranty


Detailed Specification

General

Device Type
NAS server
Host Connectivity
Gigabit Ethernet / 10 Gigabit Ethernet
Enclosure Type
Rack-mountable - 2U
Total Storage Capacity
0 GB
Installed Devices / Modules Qty
0 (installed) / 12 (max)
Width
48.2 cm
Depth
72.4 cm
Height
8.8 cm
Weight
14.5 kg

Processor / Memory

Processors Installed
1 x Intel Xeon D-1541 2.1 GHz
Number of Cores
8-core
Max Supported Qty
1
Max Turbo Speed
2.7 GHz
RAM
16 GB (installed) / 128 GB (supported) - DDR4
Features
Registered, ECC

Storage Controller

Type
RAID
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1

Networking

Data Link Protocol
10Mb LAN, 100Mb LAN, GigE, 10 GigE
Network / Transport Protocol
PPTP, L2TP, iSCSI, SMTP, FTP, SMB, NFS, HTTPs
Remote Management Protocol
SNMP, Telnet, HTTPS, SSH, SMTP, LDAP
Network Services Compatibility
Microsoft Active Directory (AD), Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV)
Features
Firewall protection, VPN support, LDAP support, wake on LAN (WOL), antivirus analysis, High Availability, download client, anti-malware protection, Access Control List (ACL) support, e-mail server, reset button, bandwidth control, surveillance station, VPN Server, Link Aggregation, failover protection, DLNA support, OpenStack compatible, B-tree file system (Btrfs), file station, EXT4 file system, iSCSI LUN clone/snapshot, Windows ODX, MailPlus server
Encryption Algorithm
AES-NI

Security DVR

IP Cameras Supported
100
Compression Format
MJPEG, H.264, H.265
Image Resolution
1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160

Expansion / Connectivity

Expansion Bays
12 (total) / 12 (free) x hot-swap - 2.5" / 3.5"
Expansion Slots
2 x PCI Express 3.0 x8 , 4 (total) / 3 (free) x DIMM 288-pin
Interfaces
4 x Ethernet 1000Base-T - RJ-45 , 2 x USB 3.0 - Type A , 1 x serial - DB-9 , 2 x Ethernet 10Gb - RJ-45

Miscellaneous

Features
Built-in 4 cooling fans
Compliant Standards
VCCI, BSMI, CCC, FCC, RoHS, EAC, RCM
Included Accessories
Accessory pack

Power

Power Device
Internal power supply
Installed Qty
2
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
137.17 Watt
Power Provided
500 Watt

Software / System Requirements

OS Required
Microsoft Windows 7 or later, Apple MacOS X 10.11 or later

Manufacturer Warranty

Service & Support
Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
5 - 95%
Sound Emission
49.8 dBA
