Description

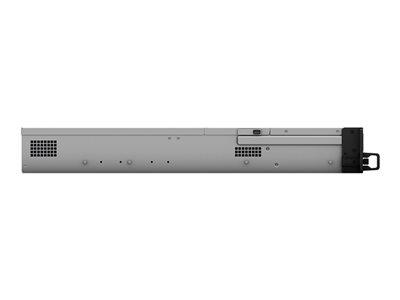

FS3600 is a 24-bay all-flash Synology NAS for enterprise use that boosts the performance of I/O sensitive applications, such as databases, virtual machines, or online transaction processing (OLTP).
-
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component. -
Real-time collaboration on your private cloud
Synology Office is a collaboration package combining the convenience and usability of the public cloud with private cloud privacy and security. It enables seamless collaboration on documents and spreadsheets in a protected environment. -
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.
Specifications
Summary
- Product Description
- Synology FlashStation FS3600 - NAS server
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet / 10 Gigabit Ethernet
- Enclosure Type
- Rack-mountable - 2U
- Installed Devices / Modules Qty
- 0 (installed) / 24 (max)
- Dimensions (WxDxH)
- 48.2 cm x 72.4 cm x 8.8 cm
- Weight
- 14.9 kg ()
- Processor
- 1 x Intel Xeon D-1567 2.1 GHz (12-core)
- Storage Controller
- RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1
- Networking
- 10Mb LAN, 100Mb LAN, 1GbE, 10GbE
- IP Cameras Supported
- 128
- RAM
- 16 GB
- Power
- AC 120/230 V (50/60 Hz)
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet / 10 Gigabit Ethernet
- Enclosure Type
- Rack-mountable - 2U
- Total Storage Capacity
- 0 GB
- Installed Devices / Modules Qty
- 0 (installed) / 24 (max)
- Width
- 48.2 cm
- Depth
- 72.4 cm
- Height
- 8.8 cm
- Weight
- 14.9 kg ()
Processor / Memory
- Processors Installed
- 1 x Intel Xeon D-1567 2.1 GHz
- Number of Cores
- 12-core
- Max Supported Qty
- 1
- Max Turbo Speed
- 2.7 GHz
- RAM
- 16 GB (installed) / 128 GB (supported) - DDR4
- Features
- Registered, ECC
Storage Controller
- Type
- RAID
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1
Networking
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE, 10GbE
- Network / Transport Protocol
- PPTP, L2TP, iSCSI, SMTP, FTP, SMB, NFS, HTTPs
- Remote Management Protocol
- SNMP, Telnet, HTTPS, SSH, SMTP, LDAP
- Network Services Compatibility
- Microsoft Active Directory (AD), Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV)
- Features
- Firewall protection, VPN support, LDAP support, wake on LAN (WOL), antivirus analysis, High Availability, anti-malware protection, Access Control List (ACL) support, e-mail server, reset button, bandwidth control, surveillance station, VPN Server, Link Aggregation, failover protection, OpenStack compatible, B-tree file system (Btrfs), file station, EXT4 file system, iSCSI LUN clone/snapshot, Windows ODX, MailPlus server
- Encryption Algorithm
- AES-NI
Security DVR
- IP Cameras Supported
- 128
- Compression Format
- MJPEG, H.264, H.265
- Image Resolution
- 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160
Expansion / Connectivity
- Expansion Bays
- 24 (total) / 24 (free) x hot-swap - 2.5"
- Expansion Slots
- 1 x PCI Express 3.0 x8 , 4 (total) / 3 (free) x DIMM 288-pin
- Interfaces
- 4 x Ethernet 1000Base-T - RJ-45 , 2 x USB 3.0 - Type A , 1 x serial - DB-9 , 2 x Ethernet 10Gb - RJ-45
Miscellaneous
- Features
- Built-in 4 cooling fans
- Compliant Standards
- VCCI, BSMI, FCC, RoHS, EAC, RCM
- Included Accessories
- Accessory pack
Power
- Power Device
- Internal power supply
- Installed Qty
- 2
- Max Supported Qty
- 2
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 258.23 Watt
- Power Provided
- 500 Watt
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 5 - 95%
- Sound Emission
- 57 dBA
