Description
Synology SA3200D features a dual controller architecture to ensure operations and core business functions are not severely impacted by a disaster or unplanned incident that take critical systems offline. The hardware redundancy mechanism leverages controllers, power supplies, and fans to prevent a single point of failure. Powered by the intuitive and feature-rich operating system DiskStation Manager (DSM), SA3200D provides comprehensive protection for network, file services, and applications.
-
Designed with high availability and scalability
Synology SA3200D is a cost-effective yet highly available data management solution for enterprises. Underneath the 2U chassis are dual controller modules in an active-passive architecture, each connected to the other by the reliable, high-speed Non-Transparent Bridge (NTB) with low latency. Service continuity is also backed up by the hardware redundancy mechanism of modularized power supplies and fans to prevent a single point of failure. -
Real-time protection with automatic failover
With an active-passive design consisting of dual controller modules and the built-in Synology High Availability (SHA) service, SA3200D is built to provide a real-time, system-level protection to maximize service availability. It actively monitors network status and critical file services of CIFS, iSCSI, AFP, FTP, NFS, and Synology Directory Server. -
Easy to deploy, easy to manage
SA3200D is designed to help IT administrators easily deploy and manage a highly available data management infrastructure. The system features straightforward, wizard-based GUI setup processes that allow you to build up a highly available service environment within minutes. Service status monitoring is made easy and intuitive. -
Virtualize workloads flexibly in a protected environment
Synology Virtual Machine Manager (VMM) is an intuitive hypervisor software application allowing you to easily set up virtual machines and run various operating systems, including Windows, Linux, and Virtual DSM. By integrating the computing and the storage nodes into one system, single vendor support experience is achieved to lower the management cost.
Specifications
Summary
- Product Description

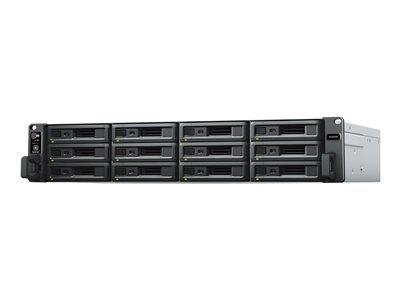

- Synology SA3200D - NAS server
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet / 10 Gigabit Ethernet
- Enclosure Type
- Rack-mountable - 2U
- Max Supported Capacity
- 192 TB
- Installed Devices / Modules Qty
- 0 (installed) / 12 (max)
- Dimensions (WxDxH)
- 48.2 cm x 72.4 cm x 8.8 cm
- Weight
- 19.7 kg ()
- Processor
- 2 x Intel Xeon D-1521 2.4 GHz (Quad-Core)
- Storage Controller
- RAID RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1
- Networking
- 10Mb LAN, 100Mb LAN, 1GbE, 10GbE
- IP Cameras Supported
- 100
- RAM
- 16 GB
- Power
- AC 120/230 V (50/60 Hz)
- System Requirements
- Microsoft Windows 7 or later, Apple MacOS X 10.11 or later
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet / 10 Gigabit Ethernet
- Enclosure Type
- Rack-mountable - 2U
- Total Storage Capacity
- 0 GB
- Max Supported Capacity
- 192 TB
- Installed Devices / Modules Qty
- 0 (installed) / 12 (max)
- Width
- 48.2 cm
- Depth
- 72.4 cm
- Height
- 8.8 cm
- Weight
- 19.7 kg ()
Processor / Memory
- Processors Installed
- 2 x Intel Xeon D-1521 2.4 GHz
- Number of Cores
- Quad-Core
- Max Supported Qty
- 2
- Max Turbo Speed
- 2.7 GHz
- RAM
- 16 GB (installed) / 128 GB (supported) - DDR4
- Features
- ECC
Storage Controller
- Type
- RAID
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1
Networking
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE, 10GbE
- Network / Transport Protocol
- PPTP, L2TP, iSCSI, SMTP, FTP, SMB, NFS, HTTPs
- Remote Management Protocol
- SNMP, Telnet, HTTPS, SSH, SMTP, LDAP
- Network Services Compatibility
- Microsoft Active Directory (AD), Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV)
- Features
- Firewall protection, VPN support, LDAP support, wake on LAN (WOL), antivirus analysis, High Availability, download client, anti-malware protection, Access Control List (ACL) support, e-mail server, reset button, bandwidth control, surveillance station, VPN Server, Link Aggregation, failover protection, DLNA support, OpenStack compatible, B-tree file system (Btrfs), file station, EXT4 file system, iSCSI LUN clone/snapshot, Windows ODX, MailPlus server
- Encryption Algorithm
- AES-NI
Security DVR
- IP Cameras Supported
- 100
- Compression Format
- H.264
Expansion / Connectivity
- Expansion Bays
- 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5"
- Expansion Slots
- 2 x PCI Express 3.0 x8
- Interfaces
- 4 x Ethernet 1000Base-T - RJ-45 , 2 x serial - DB-9 , 2 x Ethernet 10Gb - RJ-45
Miscellaneous
- Features
- Built-in 4 cooling fans
- Compliant Standards
- VCCI, BSMI, CCC, FCC, RoHS, EAC, RCM
- Included Accessories
- Accessory pack
Power
- Power Device
- Internal power supply
- Installed Qty
- 2
- Max Supported Qty
- 2
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 417.48 Watt
- Power Provided
- 500 Watt
Software / System Requirements
- OS Required
- Microsoft Windows 7 or later, Apple MacOS X 10.11 or later
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 5 - 95%
- Sound Emission
- 51.3 dBA
