Description

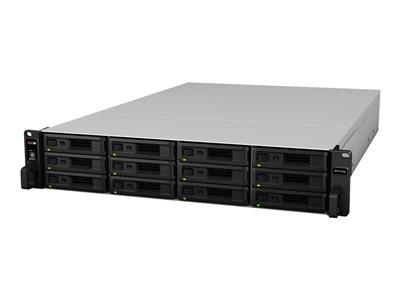

Easily add 12 additional drive bays to Synology FlashStation or RackStation. Supporting both 2.5" and 3.5" SAS/SATA drives, the RX1217sas is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination. Dual power supplies ensure continuous service uptime. Easily replace defective drives with the hot-swappable drive trays.
-
12-bay 3.5"/2.5" SAS/SATA expansion
Easily add 12 additional drive bays to Synology FlashStation or RackStation. Supporting both 2.5" and 3.5" SAS/SATA drives, the RX1217sas is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination. -
Maximum reliability design
Dual power supplies ensure continuous service uptime. Easily replace defective drives with the hot-swappable drive trays.
Specifications
Summary
- Product Description
- Synology RX1217sas - storage enclosure
- Device Type
- Storage enclosure
- Enclosure Type
- Rack-mountable - 2U
- Installed Devices / Modules Qty
- 0 (installed) / 12 (max)
- Supported Drives
- SATA-600 / SAS
- Hard Drive
- No HDD
- Power
- AC 120/230 V - 50 - 60 Hz
- Power Redundancy
- Yes
- Dimensions (WxDxH)
- 48.2 cm x 72.4 cm x 8.8 cm
- Weight
- 18 kg
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Storage enclosure
- Enclosure Type
- Rack-mountable - 2U
Chassis
- Installed Devices / Modules Qty
- 0
- Supported Devices / Modules Qty
- 12
- Supported Drives
- SATA-600 / SAS
Processor
- CPU
- No CPU
Hard Drive
- Type
- No HDD
Expansion / Connectivity
- Expansion Bays
- 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" shared
- Interfaces
- 1 x SAS (input) , 1 x SAS (output)
Miscellaneous
- Cables Included
- 1 x mini SAS HD cable
- Compliant Standards
- FCC Class A certified, RoHS, BSMI Class A
Power
- Power Device
- 2 x internal power supply
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Voltage Required
- AC 120/230 V - 50 - 60 Hz
Dimensions & Weight
- Width
- 48.2 cm
- Depth
- 72.4 cm
- Height
- 8.8 cm
- Weight
- 18 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 5 - 95%
