StarTech.com Fiber Breakout Cable 10m MPO / MTP to LC

Review this product
Quicklinx: DXF1WS00 Mfr#: MPO8LCPL10M
Length: 10m
Colour: Aqua
Stock Status: In Stock
13 in stock
£288.64 ex VAT
£346.36 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

Fan out eight fibers from a 40Gbps MPO connection to four 10Gbps LC connections. This MPO/MTP to 8x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.

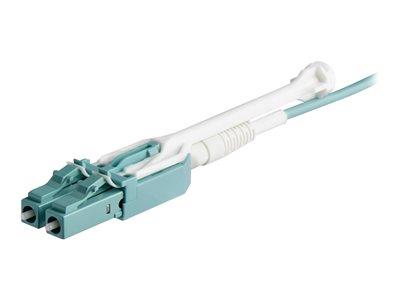

The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.

The MPO cable is housed in a plenum-rated jacket and is ideal for in-wall installations or anywhere CMP fire rating is required.

Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.

Specifications

Summary

Product Description
StarTech.com 10m 30ft MPO/MTP to LC Breakout Cable - Push/Pull Tab - Plenum - breakout cable - 10 m - aqua
Type
Breakout cable - OM3
Technology
Fibre optic
Type of Fibre Optics
Multimode
Features
Plenum
Length
10 m
Core / Cladding Diameter
50 / 125 micron
Connector
MTP/MPO multi-mode - female - push/pull
Connector (Second End)
8 x LC multi-mode - male - push/pull
Colour
Aqua
Manufacturer Warranty
Limited lifetime warranty


Detailed Specification

General

Network Cable Type
Breakout cable - OM3
Technology
Fibre optic
Type of Fibre Optics
Multimode
Core / Cladding Diameter
50 / 125 micron
Features
Plenum
Length
10 m
Weight
91.4 g
Colour
Aqua

Connectivity

Connector
MTP/MPO multi-mode - female - push/pull
Connector (Second End)
8 x LC multi-mode - male - push/pull

Miscellaneous

Compliant Standards
RoHS

Manufacturer Warranty

Service & Support
Limited lifetime warranty
