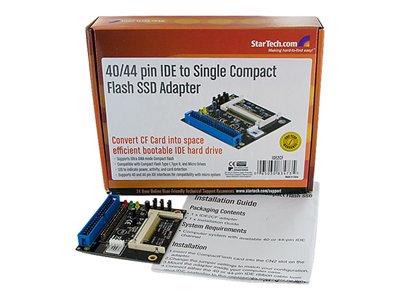

Buy Products 40/44 Pin IDE to Compact Flash SSD Adapter 40/44 Pin IDE to Compact Flash SSD Adapter

Review this product
Quicklinx: 64L1WS00 Mfr#: IDE2CF
Type: Adapter Card
Ordered upon request
£6.90 ex VAT
£8.28 inc VAT
Standard delivery Product out of stock. Due date unavailable.


Connect a CompactFlash card to a 40 or 44-pin IDE host.

This IDE to Compact Flash SSD Adapter Card allows you to convert a single Compact Flash (CF type I/II) Card or MicroDrive into a bootable IDE Solid State Drive - a simple and convenient way to replace a IDE hard disk drive.

The adapter card makes it easy to build your own do-it-yourself SSD (requires CF card or Micro Drive), allowing you to take advantage of the benefits that Solid State storage has to offer. With no moving parts, an SSD is the ideal solution in work environments desiring the key properties of SSD's - low power consumption, no noise, shock resistance, fast access time and low operating temperatures providing cooler and quieter storage than a conventional hard disk drive. Plus, Solid State drives are less susceptible to atmospheric hazards (e.g. dust particles, atmospheric changes etc.), ensuring seamless performance regardless of environmental factors.

The adapter is equipped with both a 40 pin (3.5in Desktop HDD) IDE channel or a 44 pin (2.5in Notebook HDD) IDE channel. This unique multi interface board allows the adapter to be used in both regular and small form factor case designs, create a perfect solution for embedded systems.



Product Description 40/44 Pin IDE to Compact Flash SSD Adapter - IDE to CF Card reader - CF to IDE Converter (IDE2CF) - CompactFlash Card adapter - IDE
Device Type
CompactFlash Card adapter
Interface Type
Dimensions (WxDxH)
6.3 cm x 7 cm x 1.3 cm
20 g
Manufacturer Warranty
1-year warranty

Detailed Specification


Device Type
CompactFlash Card adapter
Interface Type
6.3 cm
7 cm
1.3 cm
20 g

Expansion / Connectivity

Expansion Slots
2 x CompactFlash Card (3.3 V/ 5 V) - type I/II
1 x storage - IDE - 44 PIN IDC , 1 x storage - IDE - 40 PIN IDC


Compliant Standards

Manufacturer Warranty

Service & Support
Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
