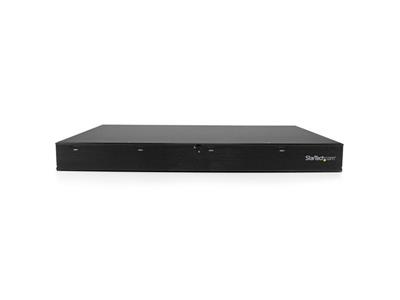

StarTech.com 1U Rackmount 4-Bay 3.5" SATA / SAS External Hard Drive Enclosure w/ SATA 6 Gbps

StarTech.com 1U Rackmount 4-Bay 3.5" SATA / SAS External Hard Drive Enclosure w/ SATA 6 Gbps

Review this product
Quicklinx: 92PXWS00 Mfr#: SAT35401U
Type: Hard drive array
Controller Type: Serial ATA/Serial Attached SCSI 2
Stock Status: In Stock
Less than 10 in stock
£232.85 ex VAT
£279.42 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

Turn four 3.5" SATA/SAS drives into a 1U rack-mountable storage solution with external Mini SAS connectivity. The SAT35401U Rack-mountable 4-bay trayless HDD enclosure enables you to mount and hot-swap up to four 3.5" SATA or SAS hard drives into 1U of rack/cabinet storage space.

To ensure maximum performance and versatility, the enclosure offers support for SATA/SAS HDD speeds up to 6.0 Gbps with a mini SAS interface and is fully compatible with RAID controllers for enhanced storage applications.

The rugged steel rack-mountable chassis with 3 built-in fans makes it an ideal solution for any server environment that requires hot-swappable storage.

Specifications

Summary

Product Description
StarTech.com 1U Rackmount 4-Bay 3.5" SATA/SAS External Hard Drive Enclosure - hard drive array
Device Type
Hard drive array
Interface
SAS 6Gb/s
Installed Devices / Modules Qty
4 (max)
Supported Drives
SATA-600 / SAS-2
Storage Controller
SATA/SAS-2 ( SATA 6Gb/s / SAS 6Gb/s )
Hard Drive
0 HDD - hot-swap
OS Required
Apple MacOS X, Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Linux 2.6.31 or later, Windows 8 (32/64 bits)
Power
AC 120/230 V
Dimensions (WxDxH)
30.2 cm x 44 cm x 5.35 cm
Weight
5.8 kg
Manufacturer Warranty
2 years warranty


Detail

General

Device Type
Hard drive array
Enclosure Colour
Black

Chassis

Supported Devices / Modules Qty
4
Supported Drives
SATA-600 / SAS-2

Storage

HDD Array External Interface
SAS 6Gb/s

Storage Controller

Type
SATA/SAS-2
Channel Qty
4
Interface Type
SATA 6Gb/s / SAS 6Gb/s
Data Transfer Rate
600 MBps

Hard Drive

Type
HDD - hot-swap
Capacity
0

Expansion / Connectivity

Expansion Bays
4 (total) / 4 (free) x hot-swap - 3.5"
Interfaces
1 x SAS 6Gb/s

System Requirements

OS Required
Apple MacOS X, Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Linux 2.6.31 or later, Windows 8 (32/64 bits)

Miscellaneous

Features
Built-in 3 cooling fans
Mounting Kit
Included
Compliant Standards
WHQL, FCC, RoHS

Power

Power Device
External power adapter
Voltage Required
AC 120/230 V

Dimensions & Weight

Width
30.2 cm
Depth
44 cm
Height
5.35 cm
Weight
5.8 kg

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature
5 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 80%
