StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III

Review this product
Quicklinx: 98FZWS00 Mfr#: HSB3SATSASBA
Type: Storage mobile rack
HD Size: 2.5"
Stock Status: In Stock
24 in stock
£74.53 ex VAT
£89.43 inc VAT
Qty
Standard delivery Delivered within 3-5 working days

Description

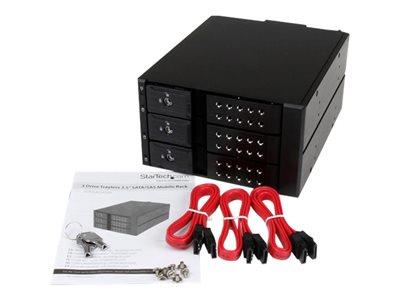

Easily connect and hot swap up to three 3.5" SATA/SAS hard drives from two 5.25" bays. The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD).

For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives - an ideal accommodation for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.

Specifications

Summary

Product Description
StarTech.com 3 Bay Trayless Hot Swap 3.5" SATA HDD Mobile Rack Backplane - storage mobile rack
Device Type
Storage mobile rack
Colour
Black
Expansion Bays
3 x hot-swap - 3.5"
Compatible Bay
2 5.25"
Hard Drive Form Factor Compatibility
2.5"
Supported Interface
SATA-600
Drive Connector
29 pin internal SAS (SFF-8482)
Features
Data indicator, power indicator
Product Material
Aluminium
Dimensions (WxDxH)
14.5 cm x 19.41 cm x 11 cm
Weight
1.2 kg
Manufacturer Warranty
2 years warranty


Detail

General

Device Type
Storage mobile rack
Hard Drive Form Factor Compatibility
2.5"
Product Material
Aluminium
Colour
Black
Supported Interface
SATA-600
Features
Data indicator, power indicator

Expansion / Connectivity

Bays
3 x hot-swap - 3.5"
Interfaces
3 x SATA 6Gb/s - 29 pin internal SAS (SFF-8482)
Connections
3 - 7 pin Serial ATA , 2 - 15 pin Serial ATA power
Compatible Bay
2 x external 5.25"

Miscellaneous

Cables Included
3 x Serial ATA cable - 45.72 cm
Mounting Kit
Included
Compliant Standards
FCC, RoHS

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Dimensions & Weight

Width
14.5 cm
Depth
19.41 cm
Height
11 cm
Weight
1.2 kg

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
5 - 85%
