Description
This PCI Express based 10/100 Ethernet Card provides a simple way to connect a PCIe enabled server or workstation to a 10/100 Ethernet network and offers a broad range of features and functions, including support for both Full and Half Duplex operation as well as Wake On LAN (WOL) Power Management.

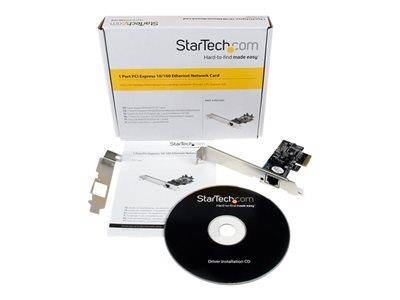

The PEX100S Ethernet Card includes both standard and low profile brackets and is compatible with most mATX (Slimline) and ATX system form factors, and features Auto MDI/MDIX automatic configuration, which helps to simplify installation and configuration.
Specifications
Summary
- Product Description
- StarTech.com 1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card (PEX100S) - network adapter - PCIe - 10/100 Ethernet
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express x1
- Ports
- 10/100 Ethernet
- Dimensions (WxDxH)
- 2.1 cm x 12 cm
- Weight
- 45 g
- Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX
- Data Link Protocol
- 10Mb LAN, 100Mb LAN
- Data Transfer Rate
- 100 Mbps
- Processor
- 1 x Realtek Semiconductor RTL8101E
- Compliant Standards
- IEEE 802.3x
- System Requirements
- Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 2.6.x to 4.11.x LTS versions, Microsoft Windows Server 2019
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express x1
Networking
- Ports
- 10/100 Ethernet
- Connectivity Technology
- Wired
- Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX
- Data Link Protocol
- Ethernet, Fast Ethernet
- Data Transfer Rate
- 100 Mbps
- Status Indicators
- Port transmission speed
- Features
- Full duplex capability, auto-sensing per device, auto-negotiation, wake on LAN (WOL), auto-uplink (auto MDI/MDI-X), half duplex mode
- Compliant Standards
- IEEE 802.3x
Processor / Memory
- Processor
- 1 x Realtek Semiconductor RTL8101E
Expansion / Connectivity
- Interfaces
- 1 x 100Base-TX - RJ-45
- Compatible Slots
- 1 x PCI Express x1
Miscellaneous
- Included Accessories
- Low-profile bracket, full-height bracket
- Compliant Standards
- FCC, RoHS
Software / System Requirements
- Software Included
- Drivers & Utilities
- OS Required
- Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 2.6.x to 4.11.x LTS versions, Microsoft Windows Server 2019
- Additional Requirements
- CD-ROM
Dimensions & Weight
- Width
- 2.1 cm
- Depth
- 12 cm
- Weight
- 45 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
