Description

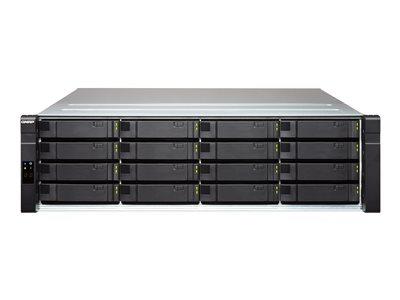

The EJ1600 v2 expansion enclosure is designed for expanding the storage space on a QNAP Enterprise ZFS NAS by connecting multiple expansion enclosures via high-speed mini SAS cables. Featuring a 12 Gbps SAS interface on the chassis, the EJ1600 v2 ensures fast data passthrough from 12 Gbps SAS-enabled Enterprise ZFS NAS. This is especially useful for virtualization applications and large data applications that require high-performance interconnection, such as video surveillance, archiving large data, and TV broadcast storage, to provide businesses with optimized efficiency and maximized ROI. The EJ1600 v2 connects to the Enterprise ZFS NAS via the dual path mini-SAS design to sustain continuous operations even if an external JBOD cable is disconnected.
-
Efficient power redundancy
With a 1+1 power redundancy scheme and dual internal power supplies, the QNAP EJ1600 v2 ensures continuous operation, even in the event of a power supply failure. This feature is crucial for maintaining data integrity and availability in mission-critical environments. -
Versatile expansion options
The EJ1600 v2 offers flexible storage solutions with its hot-swap expansion bays that support both 2.5" and 3.5" drives. This versatility allows for easy scalability and maintenance, accommodating a wide range of storage requirements. -
Optimized for reliability
Designed to operate in environments with a humidity range of 5 - 95% (non-condensing), the EJ1600 v2 is built to withstand diverse operational conditions, ensuring reliable performance and longevity.
Specifications
Summary
- Product Description
- QNAP EJ1600 v2 - storage enclosure
- Device Type
- Storage enclosure
- Enclosure Type
- Rack-mountable - 3U
- Installed Devices / Modules Qty
- 0 (installed) / 16 (max)
- Supported Drives
- SAS-3
- Built-in Devices
- Led panel
- Hard Drive
- No HDD
- Power
- AC 120/230 V - 50/60 Hz
- Power Redundancy
- Yes
- Dimensions (WxDxH)
- 44.62 cm x 61.8 cm x 13.2 cm
- Weight
- 24.11 kg
Detailed Specification
General
- Device Type
- Storage enclosure
- Enclosure Type
- Rack-mountable - 3U
Chassis
- Built-in Devices
- Led panel
- Installed Devices / Modules Qty
- 0
- Supported Devices / Modules Qty
- 16
- Supported Drives
- SAS-3
Processor
- CPU
- No CPU
Hard Drive
- Type
- No HDD
Expansion / Connectivity
- Expansion Bays
- 16 (total) / 16 (free) x hot-swap - 2.5" / 3.5" shared
- Interfaces
- 2 x SAS 6Gb/s (input) - 36 pin 4x Mini SAS HD (SFF-8644) , 2 x SAS 6Gb/s (output) - 36 pin 4x Mini SAS HD (SFF-8644) , 4 x serial (management) - 9 pin D-Sub (DB-9) , 2 x SAS 6Gb/s (reserved) - 36 pin 4x Mini SAS HD (SFF-8644)
Miscellaneous
- Features
- Hot-swappable fans, lockable tray
- Cables Included
- 1 x SFF-8644 to SFF-8644 SAS cable - 50 cm
- Compliant Standards
- FCC Class A certified, VCCI, BSMI, EN 60950, EN55022, EN55024, CB, ISO 7779, LVD
- Included Accessories
- 2 power cords, 64 x flat head screws (for 2.5" HDD), 64 x flat head screws (for 3.5" HDD), E2 Series rail kit, 16 x HDD tray stickers
Power
- Power Device
- 2 x internal power supply - hot-plug
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Voltage Required
- AC 120/230 V - 50/60 Hz
- Power Consumption Operational
- 344.19 Watt
- Power Provided
- 450 Watt
Dimensions & Weight
- Width
- 44.62 cm
- Depth
- 61.8 cm
- Height
- 13.2 cm
- Weight
- 24.11 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Sound Emission
- 53.5 dB
